Patching Framework III

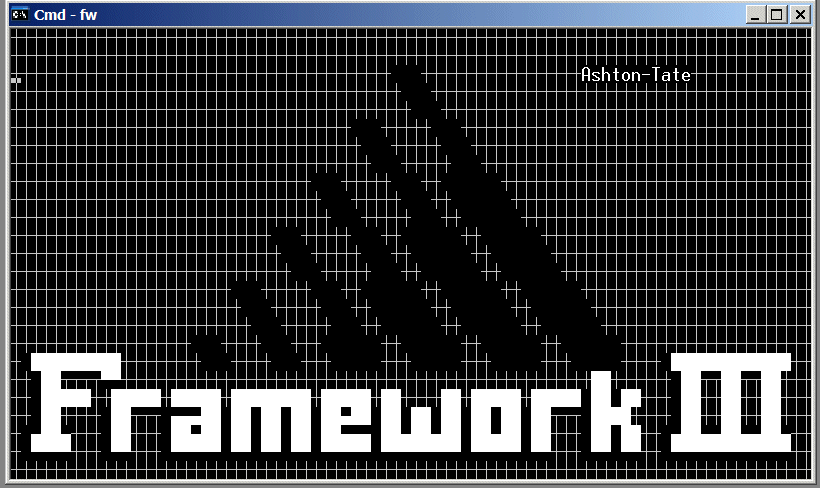

Time warp. I needed to read some old files I wrote in 1992 using the Ashton-Tate Framework III program. Unfortunately, trying to run the program under Windows XP resulted in a "Divide overflow" error. A bit of searching on the web revealed that the problem was related to the system's speed (1.6GHz). Apparently, Framework tries to calculate the speed of the machine by dividing a fixed number with a loop counter; on modern machines this results in the overflow.

Some newsgroup postings advocated using a program called moslo to slow down the machine. This did not work for me; probably the free trial version of moslo was incompatible with modern versions of Windows. I therefore decided to test my luck patching the application.

At that point I realized that many of my tools (debuggers, disassemblers) were incompatible with non Win32 applications. Working with legacy systems is not trivial. I resorted searching the file's hex output with vim (in hex mode), but did not get very far.

The next try involved debugging the program with the MS-DOS debugger debug.exe. The DIV instruction overflow generates an interrupt 0. I dumped the four bytes at the vector 0 (0:0) and set a breakpoint there. When the breakpoint was reached, I could examine the stack (SS:SP) to see the address that generated the overflow interrupt. The address contained a DIV instruction; replacing it with two NOP instructions solved the problem. I was glad I could still remember the intricancies of the Intel 8086 segmented addressing, and the various debug commands.

I wrote a small patch program (executable knowledge, in the words of Phillip Armour) in case somebody else encounters the same problem. I hope this blog entry and Google will point toward the solution.

It is amazing in how many different ways legacy programs can fail. On the other hand, I was thrilled to browse Samba network drives located on a FreeBSD server using Framework's file browser. None of the software systems I used was available at the time the program was released (late 1988).
