Diomidis Spinellis
Department of Mathematics
GR-832 00 Karlovasi, Samos
Chrissoleon T. Papadopoulos
Department of Business Administration
GR-821 00 Chios Island
University of the Aegean
Greece
e-mail: {dspin,hpap}@aegean.gr
February, 1998
We describe a simulated annealing approach for solving the buffer allocation problem in reliable production lines. The problem entails the determination of near optimal buffer allocation plans in large production lines with the objective of maximizing their average throughput. The latter is calculated utilizing a decomposition method. The allocation plan is calculated subject to a given amount of total buffer slots in a computationally efficient way.
Buffer allocation is a major optimization problem faced by manufacturing systems designers. It has to do with devising an allocation plan for distributing a certain amount of buffer space among the intermediate buffers of a production line. This is a very complex task that must account for the random fluctuations in mean production rates of the individual workstations of the lines. To solve this problem there is a need of two different tools. The first is a tool that calculates the performance measure of the line which has to be optimized (e.g., the average throughput or the mean work-in-process). This may be an evaluative method such as simulation, a decomposition method [Ger87,DF93], or a traditional Markovian state model in conjunction with an exact numerical algorithm like [HPB93]. The second tool is a search (generative) method that tries to determine an optimal or near optimal value for the decision variables, which in our case are the buffer capacities of the intermediate buffer locations in the line. Examples of such methods are the classical search methods such as the well-known Hooke-Jeeves method, various heuristic methods, knowledge based methods, and genetic algorithms.
There are some advantages and disadvantages of the various evaluative methods used for modelling production lines. For example, simulation can handle production lines with more realistic processing times but it is a time-consuming method that cannot be utilized in conjunction with a search method that needs to apply it many times. The Markovian state model, on the other hand, provides with an exact solution for small lines (with up to twelve stations), but requires the processing time distribution to be of phase-type. This is not an overly restrictive assumption, because any distribution with a rational Laplace transform can be represented by these distributions with any desired accuracy. The Markovian model has been used to obtain some insights of the problem under investigation. Finally, the decomposition method, works well for large systems (with well over than 50 stations), and it is also applicable to exponentially distributed service times.
As far as the search methods are concerned, the traditional segmentation methods (such as the well-known Hooke-Jeeves method) fail to provide with an optimal solution in all cases, whereas, the various heuristic methods reported in the literature have the advantage of being very fast but are in general inaccurate. Lately, genetic algorithms have been applied to solve the buffer allocation problem. The accuracy and the efficiency of these algorithms have to be tested to proceed with an assessment.

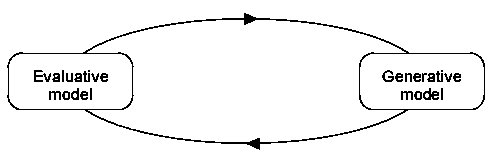

Evaluative and generative (optimization) models can be combined in a `closed loop' configuration by using feedback from an evaluative model to modify the decision taken by the generative model as illustrated in Figure 1. In this configuration the evaluative model is used to obtain the value of the objective function for a set of inputs. The value of the objective function is then communicated to the generative model which uses it as an objective criterion in its search for an optimal solution. In the rest of this paper we will use the formalism $S(G,\; E)$ to describe a closed loop system using the generative method $G$ and the evaluative method $E$. The generative models that will be used in this paper are:
For a systematic review of the existing literature in the area of evaluative and generative models of manufacturing systems, the interested reader is addressed, respectively, to two review papers by [DG92] and [PH96] and to the books by [PHB93], [AS93], [BS93], [Ger94], [Per94] and [Alt97], among others.
Although several researchers have studied the problem of optimizing buffer allocation to maximize the efficiency of a reliable production line, there is no method that can handle this problem for large production lines, in a computationally efficient way (see for example, [HS91], and [HSB93]). These methods are based on comprehensive studies to characterize the optimal buffer allocation pattern. Authors have provided extensive numerical results for balanced lines with up to 6 stations and limited results for lines with up to 9 stations.
Other relevant studies are: [CMMT88], who used simulation to investigate the buffer allocation problem, [Pow92], who studied the buffer allocation problem for unbalanced production lines, and [So97], who presented a heuristic method for determining a near optimal buffer allocation in production lines. The differentiation of So's work from the others was that the objective was to minimize the average work-in-process, provided a minimum required throughput is attained.
Furthermore, [BDI95] applied genetic algorithms for the buffer allocation in asynchronous assembly systems.
The objective of this paper is to present a search method for solving the buffer allocation problem in large reliable, balanced and unbalanced, production lines with computational efficiency. The proposed method is a simulated annealing approach that works in close cooperation with a decomposition method as given in [DF93].
Simulated annealing is an adaptation of the simulation of physical thermodynamic annealing principles described by [MRR+53] to the combinatorial optimization problems [KJV83,Cer85]. Similar to genetic algorithms [Hol75,Gol89] and tabu search techniques [Glo90] it follows the ``local improvement'' paradigm for harnessing the exponential complexity of the solution space.
The algorithm is based on randomization techniques. An overview of algorithms based on such techniques can be found in [GSB94]. A complete presentation of the method and its applications can be found in [LA87] and accessible algorithms for its implementation are presented by [CMMR87,PFTV88]. A critical evaluation of different approaches to annealing schedules and other method optimizations are given by [Ing93].
As a tool for operational research simulated annealing is presented by [Egl90], while [KAJ94] provide a complete survey of simulated annealing applications to operations research problems.
This paper is organized as follows. Section 2 states the problem and the assumptions of the model, whereas, section 3 describes the proposed simulated annealing approach. In section 4, we provide numerical results obtained from the algorithm. Finally, section 5 concludes the paper and suggests some future research directions.
In asynchronous production lines, each part enters the system from the first station, passes in order from all stations and the intermediate buffer locations and exits the line from the last station. The flow of the parts works as follows: in case a station has completed its processing and the next buffer has space available, the processed part is passed on. Then, the station starts processing a new part that is taken from its input buffer. In case the buffer has no parts, the station remains empty until a new part is placed in the buffer. This type of line is subject to manufacturing blocking (or blocking after service) and starving.
Assumptions of the model: It is assumed that the first station is never starved and the last station is never blocked. The processing (service) times at each station are assumed to be independent random variables following the exponential distribution, with mean service rates, $\mu $_{i} , $i=1,2,\&ldots;,\; K$. In our model, the stations of the line are assumed to be perfectly reliable, that is, breakdowns are not allowed.
The exponentiality of the processing times as well as the absolute reliability of the line's workstations are rather unrealistic assumptions. However, the service completion times can be exponential or can be approximated by an exponential distribution. The variability in completion times may be attributed to failures and repairs which implicitly exist in the problem at hand. Following this view, the proposed model may be applied to any unreliable production line under the exponentiality assumptions for the service completion times.

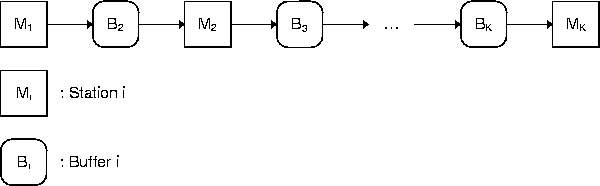

Figure 2 depicts a $K$-station line that has $K-1$ intermediate locations for buffers, labelled $B$_{2}, B_{3}, &ldots;, B_{K} .
The basic performance measures in the analysis of production lines are the average throughput (or mean production rate) and the average work-in-process (WIP) or equivalently the average production (sojourn) time.
The object of the present work is the buffering of asynchronous, reliable production lines with the assumptions given above. The objective is the maximization of the line's throughput, subject to a given total buffer space.
The buffer allocation problem: In mathematical terms, our problem can be stated as follows:
$$ | (1) |
$$B=(B_{2},B_{3},&ldots;,B_{K}) is the `buffer vector', i.e., a vector with elements the buffer capacities of the $K-1$ buffers.
$O$_{K} , denotes the average throughput of the $K$-station line. This is a function of the mean service rates of the $K$ stations, $\mu $_{i}, (i=1,2,&ldots;,K) , of the coefficients of variation, $CV$_{i} , of the service times and the buffer capacities, $B$_{i} .
Methodology of investigation: To solve the optimal buffer allocation problem (P), we have performed the following steps:
Simulated annealing is an optimization method suitable for combinatorial minimization problems. Such problems exhibit a discrete, factorially large configuration space. In common with all paradigms based on ``local improvements'' the simulated annealing method starts with a non-optimal initial configuration (which may be chosen at random) and works on improving it by selecting a new configuration using a suitable mechanism (at random in the simulated annealing case) and calculating the corresponding cost differential ( $\Delta O$_{K} ). If the cost is reduced, then the new configuration is accepted and the process repeats until a termination criterion is satisfied. Unfortunately, such methods can become ``trapped'' in a local optimum that is far from the global optimum. Simulated annealing avoids this problem by allowing ``uphill'' moves based on a model of the annealing process in the physical world.
Matter can be brought into a low-temperature ground state by careful annealing. First the substance is melted, then it is gradually cooled with a lot of time spent at temperatures near the freezing point. If this procedure is not followed the resulting substance may form a glass with not crystalline order and only metastable, locally optimal structures [KJV83]. During the cooling process the system can escape local minima by moving to a thermal equilibrium of a higher energy potential based on the probabilistic distribution $w$ of entropy $S$
$S\; =\; klnw$ | (4) |
$dS\; =\; \{d\xaf\; ET\}$ | (5) |
$w\; \sim exp(\{-EkT\})$ | (6) |
The application of the annealing optimization method to other processes works by repeatedly changing the problem configuration and gradually lowering the temperature until a minimum is reached.
The correspondence between annealing in the physical world and simulated annealing as used for optimal buffer allocation is outlined in Table 1. The algorithm used for the production line buffer allocation is given in Figure 4.
In order to evaluate the applicability of the simulated annealing method to the buffer allocation problem we designed and implemented a system to calculate the optimum buffer configuration for a given reliable production line using a simulated annealing algorithm. The system takes as input:
The system is based on the simulated annealing algorithm as described in [PFTV88]. The authors do not clarify that, strictly described, their implementation is a simulated quenching [Ing93] algorithm as it uses an exponential cooling schedule. Our implementation, for efficiency reasons, uses the same exponential cooling schedule namely:
$T(k)\; =\; T$_{0}{ | (8) |

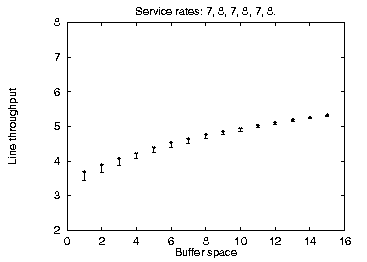

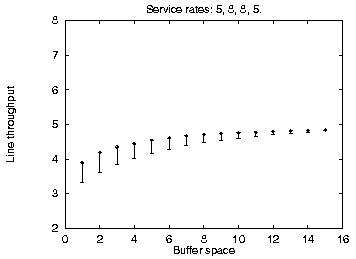

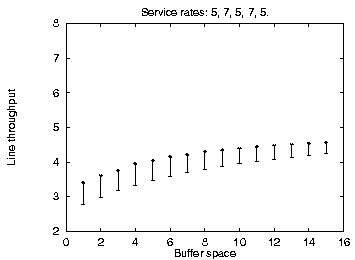

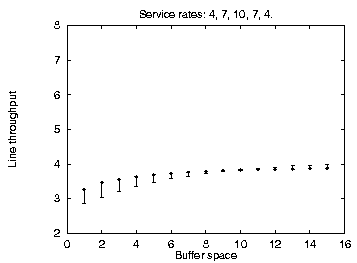

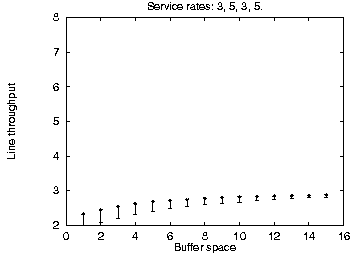

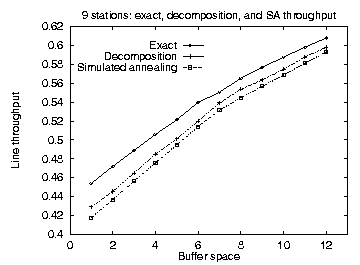

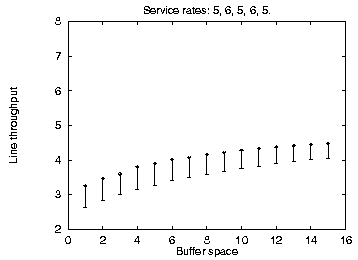

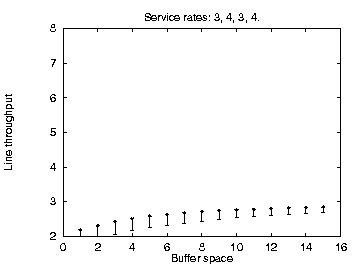

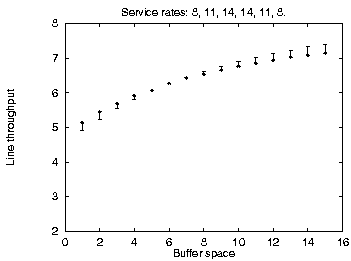

In order to evaluate our method's applicability in selecting line configurations we run a number of tests on both balanced and unbalanced lines and compared the simulated annealing results against the results obtained by other methods. For short lines and limited buffer space a complete enumeration of all configurations provided an accurate measure when comparing with the simulated annealing results. For larger configurations we used a reduced enumeration in order to provide the comparative measure.
Reduced enumeration is based on the experimental observation that the absolute difference of the respective elements of the optimal buffer allocation (OBA) vectors with $N$ and $N+1$ buffer slots is less than or equal to 1:
$|B$_{i}^{N+1} - B_{i}^{N}| ≤1, ∀i: 2 ≤i ≤K.
In this way, we have been able to derive the OBA by induction for any number $N$ of buffer slots that are to be allocated among the $K-1$ buffer locations of the line. The reduction works as follows: when $N*$ and $K$ are given one needs to determine all the OBA vectors for $N=1,2,\&ldots;,N*$ and then for $N=N*+1$ by searching only the values of $B$_{i}^{N}-1 , $B$_{i}^{N} and $B$_{i}^{N}+1 . Furthermore, this reduction starts after a number of total buffer slots $N$. To quantify the reduction, by applying the improved enumeration it has been experimentally observed that the number of iterations were reduced by at least 60% for short lines. This reduction accounts for well over 90% for large production lines (with more than 12 stations). Recall that the number of feasible allocations of $N$ buffer slots among the $K-1$ intermediate buffer locations increases dramatically with $N$ and $K$ and is given by formula (3).Both methods are subject to the reduced evaluative accuracy of the decomposition method compared to the Markovian model. In Figure 5 we present the optimum throughput configurations for balanced lines found using the simulated annealing method against the throughput found using complete (for 9 stations) and reduced enumeration techniques. It is apparent that the simulated annealing results follow closely the results obtained by the other methods.

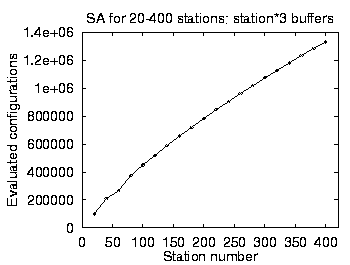

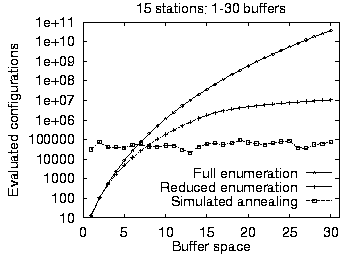

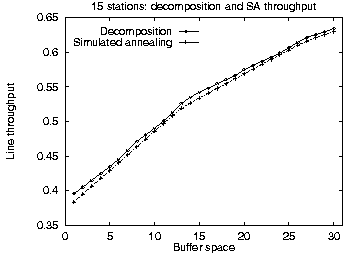

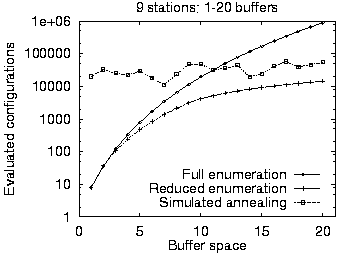

Our goal for using the simulated annealing method was to test its applicability to large production line problems where the cost of other methods was prohibitevely expensive. As an example the reduced enumeration method when run on a 15 station line with a buffer capacity of 30 units took more than 10 hours to complete on a 100MHz processor. As shown in Figure 7 the cost of the simulated annealing method is higher than the cost of the full and reduced enumeration methods for small lines and buffer allocations. However, it quickly becomes competitive as the number of stations and the available buffer size increase. Notice that -- in contrast to the other methods -- the simulated annealing cost does not increase together with the available buffer space and that it increases only linearly with the number of stations. The results we obtained could not be verified, because no other numerical results for the buffer allocation problem in large production lines can be found in the open literature.
The results obtained using the simulated annealing method to the reliable line optimal buffer allocation problem are clearly encouraging. The performance and the accuracy of the method, although inferior for optimizing small lines with limited buffer space, seem to indicate clearly that it becomes the method of choice as the problem size increases. These characteristics suggest that the method fits nicely together with the existing optimization tools satisfying the need for a large production line optimization tool.
Further investigation is needed in order to fully evaluate the method's potential. The annealing schedule that we used can clearly be optimized potentially increasing both the method's accuracy and its performance. Methods such as adaptive simulated annealing [Ing89] can be tried on the problem set in order to test their applicability. The use of heuristics in setting up the initial buffer configuration can decrease the number of steps needed for reaching the optimal. Other evaluative methods such as the Markovian model can be used in place of the decomposition algorithm for determining the change differentials. Furthermore, the small nature of changes made to the configuration during the annealing process could be taken into account for optimizing the evaluative procedure. Finally, we would like to test the method's potential on similar problems especially involving parallel station production lines.
We wish to thank Mr. Michael Vidalis for implementing the decomposition algorithm and providing us with the decomposition and reduced decomposition evaluative results.
