Relational access to Unix kernel data structures
Marios Fragkoulis * | {mfg}
|
Diomidis Spinellis * | {dds}
|
Panos Louridas * | {louridas}
|
Angelos Bilas + | {bilas}
|
* Athens University of Economics and Business, {@aueb.gr}
+ University of Crete and FORTH-ICS, {@ics.forth.gr}
Abstract
State of the art kernel diagnostic tools like DTrace and Systemtap
provide a procedural interface for expressing analysis tasks.
We argue that a relational interface to kernel data structures
can offer complementary benefits for kernel diagnostics.
This work contributes a method and an implementation for mapping a
kernel's data structures to a relational interface.
The Pico COllections Query Library ( Pi CO QL) Linux
kernel module uses a domain specific language
to define a relational representation
of accessible Linux kernel data structures, a parser to analyze
the definitions, and a compiler to implement an
SQL interface to the data structures.
It then evaluates queries written in SQL
against the kernel's data structures.
Pi CO QL queries are interactive and type safe.
Unlike SystemTap and DTrace, Pi CO QL is less intrusive
because it does not require kernel instrumentation;
instead it hooks to existing kernel data structures
through the module's source code.
Pi CO QL imposes no overhead when idle and needs
only access to the kernel data structures that contain
relevant information for answering the input queries.
We demonstrate Pi CO QL's usefulness
by presenting Linux kernel queries that provide meaningful custom
views of system resources and pinpoint issues, such as
security vulnerabilities and performance problems.
Unix, kernel, diagnostics, SQL
1 Introduction
Kernel diagnostic tools
like DTrace [7] and SystemTap [27]
provide a procedural interface for diagnosing
system issues.
We argue that a relational interface can offer
complementary advantages;
this is our motivation behind Pi CO QL.
Various imperative programming languages offer relational interfaces;
some have become very popular [21,25].
Previous work proposes relational interfaces
in place of imperative ones for performing validation tasks
at the operating system
level [14,29].
Windows-based operating systems provide the
Windows Management Instrumentation ( WMI)
infrastructure [33]
and the WMI Query Language ( WQL),
which adopts a relational syntax,
to provide access to management data and operations.
Extending operating system kernels
with high level tools [4,7] is a growing trend.
Pi CO QL is such a tool used for performing kernel diagnostic actions.
Our work contributes:
- a method for creating an extensible relational model of
Unix kernel data structures (Sections 2.1
and 2.2),
- a method to provide relational query evaluation on
Linux kernel data structures (Section 2.3), and
- a diagnostic tool to extract relational views of the
kernel's state at runtime (Section 3).
Each view is a custom image of the kernel's
state defined in the form of an SQL query.
A Unix kernel running Pi CO QL provides dynamic analysis of
accessible data structures with the following features.
- SQL SELECT queries: Queries conform
to the SQL92 standard [8].
- Type safety: Queries perform checks to ensure
data structure types are used in a safe manner. Pi CO QL
does not affect the execution of kernel code, because it does not
require its modification.
- Low performance impact: Pi CO QL's presence in the Unix kernel
does not affect system performance.
In addition, query execution consumes
only the necessary kernel resources, that is, data
structures whose relational representations appear in the query.
Thus, Pi CO QL minimizes its impact on kernel operation.
Section 4.2 presents a quantitative evaluation of
this impact.
- Relational views: To reuse queries efficiently and store
important queries, standard relational non-materialized views can be
defined in the Pi CO QL Domain Specific Language ( DSL).
Unix kernel data structures include C structs, linked lists, arrays,
and unions to name but a few [2,6].
In
the context of this paper, and unless otherwise noted, the term data
structure refers in general to Unix kernel data structures. Although
Pi CO QL's implementation targets the Linux kernel,
the relational interface is equally applicable
to other versions of Unix featuring loadable kernel modules and the
/proc file system.
We evaluate our tool by presenting SQL queries,
which diagnose interesting effects
in two domains that concern a system's operation,
namely security and performance.
We find that our tool can identify security vulnerabilities
and performance problems with less effort than other approaches.
We present several use cases to describe our tool's contribution
to the kernel diagnostics tool stack.
2 A relational interface to the Unix kernel data structures
Our method for mapping the kernel's data structures to a relational
interface addresses two challenges: first, how to provide a
relational representation for the kernel's data structures;
second, how to evaluate SQL queries to these data structures.
The key points of the design that address these challenges include:
- rules for providing a relational representation
of the kernel's data structures,
- a domain specific language (
DSL) for specifying relational representations
and required information about data structures, and
- the leveraging of SQLite's virtual table hooks
to evaluate SQL queries.
2.1 Relational representation of data structures
The problem of mapping a program's in-memory data structures
to a relational representation, and vice versa,
has been studied thoroughly in the
literature [28]. We address this problem from a different angle:
we provide a relational interface to data structures without
storing them in a relational database management system;
the issue at hand is not the transformation of data
from procedural code data structures to relational structures, but the
representation of the same data in different models.
In other words, we do not
transform the data model used for procedural programming;
instead we want to provide a relational view on top of it.
Issues that emerge in
the Object-Relational mapping problem are not relevant
to our work.
To provide a relational representation we must solve the
representation mismatch between relations and
procedural programming data structures.
Relations consist of a set of columns that host scalar values, while
data structures form graphs of arbitrary structure.
Our method defines three entities: data structures,
data structure associations, and virtual relational tables.
Specifically, it provides a relational representation of data structures
and data structure associations in the form of virtual relational tables.
Data structures can be unary instances or containers grouping
multiple instances.
Our method is expressive; it can represent has-a
associations, many-to-many associations,
and object-oriented features like
inheritance and polymorphism [10].
In this paper we exemplify the representation of has-a
associations, since this is the widespread type of
associations in the kernel.
2.1.1 Has-a associations
Has-a associations are of two types: has-one
and has-many.
To represent data structures as first normal form relations, we normalize
has-a associations between data structures,
that is we define a separate relational representation for them.

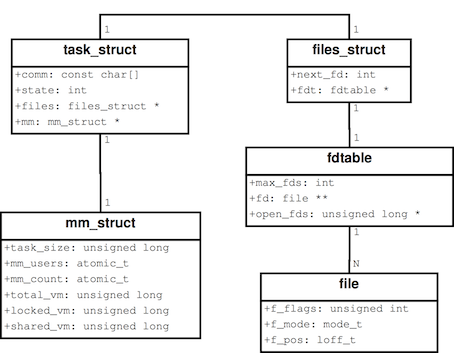

For instance Figure 1(a)
shows a simplified kernel data structure model for the Linux kernel's
files, processes, and virtual memory.

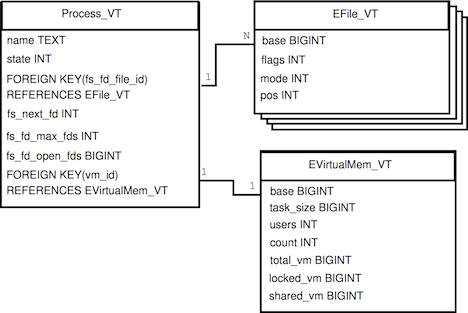

Figure 1(b) shows the respective
virtual table schema.
There, a process's associated virtual memory structure has been
represented in an associated table.
The same applies for a process's open files, a has-many
association.
Notably, this normalization process is only required for
has-many associations.
In the same schema, the associated files_struct
has been included within the process's representation.
In addition, the structure fdtable
has been included in its associated files_struct and it is also part
of the process representation; each member of fdtable and
files_struct occupies a column in Process_ VT.
By allowing to represent a has-one association
as a separate table or inside
the containing instance's table, the relational representation
flexibly expands or folds to meet representation objectives.
Combining virtual tables in queries is achieved
through join operations.
In table Process_ VT foreign key column
fs_fd_file_id identifies the set of files that a process retains
open.
A process's open file information can be retrieved by specifying
in a query a join to the file table (EFile_ VT). By specifying a
join to the file table, an instantiation happens. The instantiation of
the file table is process specific; it contains the open files of a
specific process only. For another process another instantiation would
be created. Thus, multiple potential instances of EFile_VT
exist implicitly, as Figure 1(b) shows.
Figure 1: Has-one and has-many associations
between data structures are normalized or denormalized
in the virtual relational schema.
2.2 Domain Specific Language design
Our method's DSL includes struct view definitions
that describe a virtual table's columns,
virtual table definitions
that link a struct view definition
to a data structure type, lock directive definitions to leverage
existing locking facilities when querying data structures,
and standard relational view definitions to provide
easy query reuse.
2.2.1 Struct view definition
Struct view definitions
(Listings 1, 2,
and 3) describe the columns of a
virtual table. They resemble relational table definitions. Struct
view definitions include the struct view's name and its attributes,
where the attribute information includes the name, data type, and
access path, that is, how the column value will be retrieved from the
data structure.
CREATE STRUCT VIEW Process_SV (
name TEXT FROM comm,
state INT FROM state,
FOREIGN KEY(fs_fd_file_id) FROM (files_fdtable)(
tuple_iter->files) REFERENCES EFile_VT POINTER,
fs_next_fd INT FROM files->next_fd,
fs_fd_max_fds INT FROM (files_fdtable)(
tuple_iter->files)->max_fds,
fs_fd_open_fds BIGINT FROM (files_fdtable)(
tuple_iter->files)->open_fds,
FOREIGN KEY(vm_id) FROM mm
REFERENCES EVirtualMem_VT POINTER
)
Listing 1: Struct view definition includes the mapping of
has-a relationships (Figure
1) in the virtual table schema.
The foreign key column definition (Listing 1)
supports relationships between virtual tables, which in turn represent
a has-a association between the
underlying data structures.
A foreign key specification
resembles its relational counterpart except that
no matching column of the referenced table is specified.
This is because the foreign key column matches against
the base column of the referenced virtual table
(see Section 2.3 for the use
of the base column).
The INCLUDES STRUCT VIEW directive allows including
a relational representation into another.
Section 2.1.1 explains how structures files_struct
and fdtable have been represented inline in a process's
relational representation (Process_ SV).
Listing 1 shows the respective DSL
definition and
Figure 1(b) shows the respective virtual table schema.
Instead of mapping structures' fdtable and files_struct
fields manually to Process_ SV columns, one can use the
INCLUDES STRUCT VIEW directive to reuse struct view definitions.
Listing 2 shows how the relational
representation of fdtable (Fdtable_ SV) defined elsewhere
can be included to structure's files_struct relational
representation (FilesStruct_ SV). Mapping an associated
fdtable to another data structure's relational representation
besides files_struct's requires only a similar INCLUDES
STRUCT VIEW directive to the one presented in
Listing 2.
CREATE STRUCT VIEW FilesStruct_SV (
next_fd INT FROM next_fd,
INCLUDES STRUCT VIEW Fdtable_SV FROM
(files_fdtable)(tuple_iter))
Listing 2: Struct view definition includes the mapping of
has-a inclusion (Figure
1(b)) in the virtual table schema.
Listing 1 demonstrates some important characteristics
of the DSL.
First, the special identifier POINTER is used to denote that
the column maps to a pointer type.
It is required to generate code
that meets mapped data structures' types.
Second, the extensive use of path
expressions [11] in access paths is a core
aspect of the mapping method
and of the query evaluation technique.
Path expressions identify a data structure
by specifying how to navigate to it in a
graph of data structures.
Third, accessing kernel information
in a safe manner often requires
additional constructs, such as calling kernel functions and macros.
For instance, the file descriptor table should be accessed
through kernel function files_fdtable() in order to secure the files_struct
pointer dereference. The DSL accepts calls to kernel
functions and macros and defines a reserved keyword,
tuple_iter to allow
references to a virtual table's tuple iterator.
tuple_iter provides a uniform interface to
each of a virtual table's tuples
regardless of the virtual table's tuple set size.
For instance, since a process has one files_struct,
the files_struct virtual table has tuple set size of one
and tuple_iter refers to this one tuple
(Listing 2).
From our experience in querying data structures,
it is also very useful to be able to write a block of code
relevant to an access path in order
to hold and release locks or define conditions.
For this purpose,
a DSL file starts with boilerplate C code.
This comprises include directives, macro definitions and
function definitions.
Functions and macros can then be called from an access
path context as shown in Listing 3.
The defined function check_kvm() accepts an open
file and tests whether the file belongs to a
Kernel-based Virtual Machine ( KVM) [16]
virtual machine ( VM) instance.
KVM is manageable
through file descriptors and a set of ioctl calls
that operate on open file handles.
Through this interface authorized users can manipulate
VM instances and allocated virtual CPUs.
Behind the scenes, a data structure modelling an open file - the usual
struct file - maps back to a data structure modelling a KVM
VM or virtual CPU instance depending on the ioctl call.
We leverage this mapping to hook to KVM related
data structures.
With check_kvm() we ensure that
the file is indeed an interface to a KVM VM or virtual CPU
by checking the file's name and
file ownership against the root user's account id.
long check_kvm(struct file *f) {
if ((!strcmp(f->f_path.dentry->d_name.name,
"kvm-vm")) &&
(f->f_owner.uid == 0) &&
(f->f_owner.euid == 0))
return (long)f->private_data;
return 0;
}
...
CREATE STRUCT VIEW File_SV (
...
FOREIGN KEY(kvm_id) FROM check_kvm(tuple_iter)
REFERENCES EKVM_VT POINTER) )
Listing 3: Struct view definition can contain calls to custom functions in column access paths.
2.2.2 Virtual table definition
Virtual table definitions (Listing 4) link a
data structure to its relational representation. They
carry the virtual table's name and information about the
kernel data structure it represents.
Data structure information includes an identifier ( C NAME) and a
type ( C TYPE); the identifier introduces a convention required for
mapping a Linux kernel data structure
to its virtual table representation, and the type must agree with the data structure's
programming language type. The identifier is omitted if the data structure is
nested in another data structure. A virtual table definition always links to a struct
view definition through the USING STRUCT VIEW syntax.
CREATE VIRTUAL TABLE Process_VT
USING STRUCT VIEW Process_SV
WITH REGISTERED C NAME processes
WITH REGISTERED C TYPE struct task_struct *
USING LOOP list_for_each_entry_rcu(tuple_iter,
&base->tasks, tasks)
USING LOCK RCU
Listing 4: Virtual table definition links to a
struct view one.
An interface is required for traversing data structures like arrays
and linked lists to execute queries. The USING LOOP directive
serves this purpose. In our approach, a container/iterator-based uniform
abstraction is utilized that wraps diverse types of data structures.
Listing 4 makes use of a Linux kernel built-in
macro for traversing linked lists. If such a mechanism does not exist,
user defined macros in the first part of a DSL description
may customize the loop variant by
means of iterator methods (declare, begin, end, advance) as is the case in
Listing 5. The DSL parser will
substitute references to base, which abstracts the data
structure instantiation, with an appropriate variable instance.
To synchronize access with other execution paths, the
USING LOCK directive selects a locking method from
those defined in the DSL. Section 2.2.3
details lock directive definitions.
#define EFile_VT_decl(X) struct file *X; \
int bit = 0
#define EFile_VT_begin(X, Y, Z) \
(X) = (Y)[(Z)]
#define EFile_VT_advance(X, Y, Z) \
EFile_VT_begin(X,Y,Z)
CREATE VIRTUAL TABLE EFile_VT
USING STRUCT VIEW File_SV
WITH REGISTERED C TYPE struct fdtable:struct file*
USING LOOP for (
EFile_VT_begin(tuple_iter, base->fd,
(bit = find_first_bit(
(unsigned long *)base->open_fds,
base->max_fds)));
bit < base->max_fds;
EFile_VT_advance(tuple_iter, base->fd,
(bit = find_next_bit(
(unsigned long *)base->open_fds,
base->max_fds, bit + 1))))
Listing 5: Virtual table definition includes a customized loop variant for traversing file array.
2.2.3 Lock directive definition
In-place querying requires locking data structures to ensure
synchronization for concurrent accesses.
Since our method requires only read access
to kernel data structures, it primarily relies on
synchronization primitives optimized for read access,
where these are utilized. For the Linux kernel, the
DSL's lock/unlock directives can be seen in Listing 6.
CREATE LOCK RCU
HOLD WITH rcu_read_lock()
RELEASE WITH rcu_read_unlock()
Listing 6: Lock/unlock directive definition includes lock/unlock calls to a synchronization primitive's interface.
2.2.4 Standard relational views
To support recurring queries and minimize time-to-query in these cases
relational non-materialized views can be defined in the DSL
using the standard CREATE VIEW notation,
as exemplified in Listing 7.
The particular view defines an alias for queries that hook to
KVM virtual machine instances in the system.
A similar view definition wraps the representation of
virtual CPU instances.
CREATE VIEW KVM_View AS
SELECT P.name AS kvm_process_name, users AS kvm_users,
P.inode_name AS kvm_inode_name, online_vcpus AS kvm_online_vcpus,
stats_id AS kvm_stats_id, online_vcpus_id AS kvm_online_vcpus_id,
tlbs_dirty AS kvm_tlbs_dirty, pit_state_id AS kvm_pit_state_id
FROM Process_VT as P
JOIN EFile_VT as F
ON F.base = P.fs_fd_file_id
JOIN EKVM_VT AS KVM
ON KVM.base = F.kvm_id;
Listing 7: Relational view definition identifies
KVM VM instances.
2.3 Query evaluation
In our method, the relational representation of a data
structure comprises one or more virtual tables.
Each virtual table in the representation
enables access to some part
of data structure using path expressions.
For instance, Process_ VT represents some
fields of task_struct.
Since task_struct's has-a association
with mm_struct has been modeled as a
separate virtual table (EVirtualMem_ VT), the
latter provides access to the associated
mm_struct fields.
Field access is
provided by path expressions according to the DSL specification.
Virtual tables may be combined in SQL queries by means of join
operations (Listing 8).
Data structures may span
arbitrary levels of nesting.
Although the nested data structure may be
represented as one or more virtual table(s) in the
relational interface, access to it is available through a parent data
structure only. The virtual table representing the nested data
structure ( VTn) can only be used in SQL queries combined
with the virtual table representing a parent data structure (
VTp). For instance, one cannot select a process' associated virtual
memory representation without first selecting the process.
If such a query is input, it terminates with an error.
To allow querying of VTns a join is required
to instantiate the VTn.
The join uses the column of the VTp that refers to the nested data
structure (similar to a foreign key) and the
VTn's base column, which acts as an internal identifier.
When a join operation references the VTn's base
column it instantiates the VTn by setting the foreign
key column's value to the base column.
This drives the new
instantiation thereby performing the equivalent of a join operation:
for each value of the join attribute, that is the foreign key column,
the operation finds the collection of tuples in each table participating
in the join that contain that value.
In our case the join is essentially a precomputed
one and, therefore, it has the cost of a pointer traversal.
The base column acts as the activation interface of a VTn
and we guarantee type-safety by checking that the VTn's
specification is appropriate for representing the nested data structure.
SELECT * FROM Process_VT
JOIN EVirtualMem_VT
ON EVirtualMem_VT.base = Process_VT.vm_id;
Listing 8: Join query combines processes and associated virtual memory.
In addition to combining relational representations of associated data
structures in an SQL query, joins may also be used to combine
relational representations of unassociated data structures; this is
implemented through a nested loop join [30,p. 542].
For example, consider a query to
find out which processes have the same files open
(Listing 9).
SELECT P1.name, F1.inode_name, P2.name, F2.inode_name
FROM Process_VT AS P1
JOIN EFile_VT AS F1
ON F1.base = P1.fs_fd_file_id,
Process_VT AS P2
JOIN EFile_VT AS F2
ON F2.base = P2.fs_fd_file_id
WHERE P1.pid <> P2.pid
AND F1.path_mount = F2.path_mount
AND F1.path_dentry = F2.path_dentry
AND F1.inode_name NOT IN (`null',`');
Listing 9: Relational join query shows which processes have same files open.
3 PICO QL implementation specifics
Pi CO QL has been implemented as a
loadable kernel module ( LKM) for Linux.
The cornerstone of the Pi CO QL implementation is a meta-programming
technique devised:
- to create a relational representation of arbitrary
data structures using a relational specification
of these data structures and
- to generate C code for querying the data
structures through their relational representation.
Pi CO QL relies heavily on SQLite [1], an
embeddable SQL database, and leverages
SQLite's virtual table
module [32] to support SQL queries
to in-memory kernel data structures.
We provide details on SQL support
and describe
briefly the integration of Pi CO QL with Linux.
Our kernel module uses the /proc file system for receiving
queries and communicating query result sets.
A high level interface
that runs in user space is also available.
Security is handled by implementing /proc
callback functions that provide access control
and synchronization is achieved by leveraging
the kernel's locking utilities;
we discuss consistency concerns in the
context of our work.
Finally, we present Pi CO QL's
maintainability in the course of the kernel's
evolution.
3.1 Generative programming
Our solution to the problem of representing any data
structure as a virtual table is based on a user-driven relational
specification and a meta-programming technique, generative
programming. Specifically, a parser
analyzes specifications written in the
Pi CO QL DSL and kernel data structure information.
Then a compiler generates virtual
table definitions and C callback functions for
SQL queries.
These functions implement constraint evaluation
and value retrieval for each of a virtual table's
columns.
The generative programming component of Pi CO QL
was implemented in Ruby.
3.2 Virtual table implementation
The virtual table module of SQLite, which consists of
a set of callback functions,
allows querying of user-defined data sources.
Once a module implementation is registered with SQLite,
queries to virtual tables that belong to the module
are resolved by calling the module's callback functions.
Pi CO QL implements an SQLite virtual table module, that is
those callback functions that specify a Pi CO QL
virtual table's behavior. These are: create, destroy, connect,
disconnect, open, close, filter, column, plan, advance_cursor, and eof.
The SQLite query engine calls these functions when performing
a query on a Pi CO QL virtual table.
Hence queries are
resolved by executing the implemented callback functions,
which operate on the kernel data structures.
In query processing, Pi CO QL and SQLite share
responsibilities. Pi CO QL controls query planning
and carries out constraint and data
management for each virtual table.
The hook in the query planner
ensures that the constraint referencing the base column has the
highest priority in the constraint set for the VTn and,
therefore, the instantiation will happen prior to evaluating any real
constraints.
This is important for ensuring integrity in query processing.
SQLite performs high level
query evaluation and optimization [1,p. 360].
For the most part, query efficiency
mirrors SQLite's query processing algorithms enhanced
by simply following pointers in memory in the case of
path expressions and join operations that provide a new
virtual table instantiation.
3.3 SQL support and query optimization
Pi CO QL supports all relational algebra operators as implemented by
SQLite in [1], that is, the SELECT part of
SQL92 excluding right outer joins and full outer joins. Queries
expressed using the latter, however, may be rewritten with supported
operators [1,p. 76].
For a right outer join, rearranging the order of tables in the join
produces a left outer join.
A full outer join may be transformed using
compound queries.
The query engine is a
standard relational query engine.
Concerning query optimizations, Pi CO QL benefits from
SQLite's query rewrite optimizations, e.g.
subquery flattening.
The SQLite query optimizer [31]
offers OR, BETWEEN, and
LIKE optimizations in the WHERE clause, join optimizations,
and order by optimizations associated with indices.
However, these are not currently supported by Pi CO QL
because the Pi CO QL index implementation is a
future work plan.
SQLite provides a virtual table API for indices
and a command that scans all indices of a database where
there might be a choice between two or more indices and
gathers statistics on the appropriateness
of those indices.
Providing relational views of data structures
imposes one requirement to SQL queries.
VTps have to be specified before VTns
in the FROM clause.
This stems from the implementation of SQLite's syntactic
join evaluation and does not impose a limitation to query
expressiveness.
3.4 Loadable module implementation for the Linux kernel
The process for implementing Pi CO QL in the Linux kernel
involved four steps. First we supplied a
relational representation of the target data structures and data
structure information through the Pi CO QL DSL. Second, we
executed the DSL parser to generate code based on the DSL
description for querying the data structures. Third, we implemented
the kernel module's initialization, permission, ioctl, open,
input, output, close and exit routines in order to provide an
interface to Pi CO QL.
The query library's involvement in this
step is to register virtual tables representing
kernel data structures and start the query
library
at the module's
initialization routine.
It then receives a query from the module's
input buffer, places a result set into the module's output buffer
and terminates the query library through the module's exit routine.
Finally, we compiled Pi CO QL LKM with the Linux kernel.
The main challenge in producing a loadable module was fitting
SQLite to the Linux kernel. This included omitting floating point
data types and operations, omitting support for threads, eliminating
SQLite's file I/O activity, and substituting user-space
library function calls with the corresponding ones available to kernel
code.
Floating point support and thread support for SQLite can be
controlled through compile flags. File I/O is unnecessary
since Pi CO QL stores nothing. SQLite's
in-memory mode alleviates this complexity except for the journaling
mechanism, which can be turned off with a pragma query following the
establishment of a database connection.
SQLite's flexible configuration removed
significant roadblocks with minimal effort.
The C library facilities available within the Linux kernel are
spartan. Some user space library function calls were matched through a
macro definition to implemented kernel functions. This was the case
for the memory allocation routines. A few other library function calls
were substituted with dummy macro definitions and a couple were
implemented in a straightforward manner by
combining kernel functions.
3.5 Query interfaces
A /proc file attached to the Pi CO QL module
is the main interface for inputting queries and
collecting result sets.
Pi CO QL's /proc output is produced in a number
of ways including the standard Unix header-less
column format.
In addition to the /proc file, an HTTP-based query interface
was produced through SWILL [17], a
library that adds a web interface to C programs.
Each web page served by SWILL is implemented by
a C function.
For a query interface three such functions are
essential, one to input queries, one to output query results, and one
to display errors.
3.6 Security
The kernel
provides facilities for securing a module's use and access.
First, loading and unloading a kernel module requires elevated
privileges. Second, the /proc file system, Pi CO QL's
interface, provides an API for specifying file access permissions.
Our access control security policy covers interface access control
and kernel access control, that is access from other kernel modules.
The mechanism we provide to restrict access to the kernel is based
on the ownership of the /proc file.
This should be configured to belong to a user or group with elevated privileges,
who will be allowed to execute Pi CO QL queries.
When creating the Pi CO QL /proc entry with create_proc_entry()
we specify the file's access permissions for granting access to
the owner and the owner's group.
Additionally,
the /proc interface provides a number of callback functions
for manipulating an entry's behavior. By implementing the .permission
callback function we control inode operations
to the /proc file by allowing access only to the owner
and the owner's group.
Kernel modules communicate
with each other and with the kernel leveraging exported
symbols, that is functions and variables. Pi CO QL
exports none, thus no other module can exploit Pi CO QL's symbols.
3.7 Synchronized access to kernel data structures
Ensuring synchronized access to kernel
data structures is an important requirement for our work.
For the purpose of our work we define consistency
and describe how we treat synchronization in Pi CO QL.
Finally, we discuss requirements for safe use of Pi CO QL,
the impact of misusing our tool to the kernel,
and the impact of a corrupted kernel to Pi CO QL.
3.7.1 Definition of consistency
A Pi CO QL query extracts a view of a subset of the
kernel's state as reflected by the data structures
referenced in the query.
Synchronized access to the referenced data structures
is required to obtain this view and
the view's quality depends on it.
Consistency requires that
a kernel state view
is extracted while the referenced
data structures are in the same consistent state
as if by acquiring exclusive read
access to them atomically, for the
whole query evaluation period.
This definition involves two important characteristics.
First, it refers to a part of the kernel's state that
regards the state of particular data structures; not
its global state.
Second, it refers to consistency in the strong sense, that is,
all data structures referenced in a query
do not change state during query evaluation.
In many cases non-protected kernel data pose a
limitation to the consistency we can achieve.
The individual fields of many kernel data structures are not
necessarily protected by a lock.
In fact, this also holds for data structures protected through
non-blocking synchronization such as
Read-Copy-Update [19] ( RCU).
RCU guarantees that the protected pointers will be alive
within a critical section, but the data they point to
need not be consistent.
The values of non-protected fields can change
without notice.
Consider the list of processes as an example.
The list is protected but not its individual
elements.
The pid of each process has the same value
for its whole lifecycle, but this is not true for, say,
its virtual memory resident size.
The latter can indeed change in the course of a Pi CO QL
query so that SUM(RSS) provides a different result
in two consecutive traversals of the process list
while the list itself is locked.
3.7.2 Synchronization in Pi CO QL
The kernel features non-blocking
and blocking synchronization disciplines;
Pi CO QL supports both.
Non-blocking synchronization
Non-blocking synchronization that favours read accesses
is useful to our work in terms of performance and usability,
but does not provide any consistency guarantees.
The Linux kernel
implements RCU locking,
which provides wait-free low overhead read access.
Blocking synchronization
Pi CO QL supports blocking synchronization,
but combining the different protocols requires caution.
It is the responsibility of the person defining the
virtual table specification to map the kernel data
structure specifics correctly.
Specifically, the writer of a data structure specification
is responsible for three things:
a) to specify the proper locking scheme/protocol required by a
kernel data structure, b) to ensure that the specified data
structure's synchronization protocol is
compatible with the synchronization protocols of the existing
data structure specifications, and c) queries across related data structures
entail a valid locking order.
For queries across unrelated data structures protected through
blocking synchronization, the
ordering of the locking primitives is the responsibility of the
query writer.
This technique imitates how kernel code would access the
data structures collectively.
This is a generic solution, but it is not always easy to implement,
since it requires verifying that it is safe to use a specific combination
of data structures in a given query.
Lock acquisition in Pi CO QL works in two respects: a) all locks
for globally accessible data structures
are acquired prior to query execution and
released at the end, and b) locks regarding data structures nested
to the first are acquired during the query
at the time the virtual table is instantiated
(recall sections 2.2.3 and 2.3)
and released once the query's
evaluation has progressed to the next instantiation.
Currently we use locks to provide for correct
operation and consistency.
The Linux kernel does not have a unique rule for
acquiring locks in order.
Pi CO QL has a deterministic lock ordering rule: it
acquires locks according to the syntactic position of
virtual tables in a query.
Notably, from our experience, the majority of join operations in
queries concern nested data structures;
hence, in these cases syntactic means outer to inner
and our traversal method
corresponds to the appropriate locking order.
The illustrated query in Listing 11
combines the list of processes in the system protected through
RCU, the list of a process's open files protected through RCU,
and the list of socket buffers, that is a socket's receive
buffer queue, protected through a spin lock.
The specification for the latter data structure can be seen in
Listing 10 where we reference a kernel function,
which, apart from acquiring the spinlock,
disables interrupts until unlock time and
saves/restores the active interrupt flags to resume
appropriately after a query.
The flags variable can be defined at the boilerplate
part of the DSL file.
Except for unprotected data,
Pi CO QL guarantees consistency for queries across unrelated
data structures protected though blocking synchronization
if the correct locking order is followed;
queries across related ones do not provide
consistency due to incremental lock acquisition.
Our implementation currently does not
offer the same transaction isolation
levels as a database system
due to incremental lock
acquisition and non-protected kernel data including data
referenced by RCU-protected pointers.
Notably, the treatment of synchronization in
this work is implementation
dependent up to an extent.
It is possible to alter our implementation,
or provide different configurations,
so that all necessary locks for a given query
are acquired in consecutive instructions prior to
query evaluation
and interrupts are disabled for the duration of
the query.
unsigned long flags;
...
CREATE LOCK SPINLOCK-IRQ(x)
HOLD WITH spin_lock_save(x, flags)
RELEASE WITH spin_unlock_restore(x, flags)
CREATE VIRTUAL TABLE ESockRcvQueue_VT
USING STRUCT VIEW SkBuff_SV
WITH REGISTERED C TYPE struct sock:struct sk_buff *
USING LOOP skb_queue_walk(&base->sk_receive_queue,
tuple_iter)
USING LOCK SPINLOCK-IRQ(&base->sk_receive_queue.lock)
Listing 10: Blocking lock/unlock directive definition includes argument specifying the lock type.
SELECT name, inode_name, socket_state,
socket_type, drops, errors, errors_soft, skbuff_len
FROM Process_VT AS P
JOIN EFile_VT AS F
ON F.base = P.fs_fd_file_id
JOIN ESocket_VT AS SKT
ON SKT.base = F.socket_id
JOIN ESock_VT AS SK
ON SK.base = SKT.sock_id
JOIN ESockRcvQueue_VT Rcv
ON Rcv.base=receive_queue_id;
Listing 11: Retrieve socket and socket buffer data for all open sockets.
3.7.3 When things can go wrong
The virtual tables we defined for accessing
Linux kernel's data structures are correct, use
the right synchronization protocols, and
can be safely combined together in queries.
However, inappropriate virtual table definitions
and ordering of virtual tables in queries
might result in a kernel crash.
Incorrect locking in virtual tables and kernel corruption
can result in erroneous values in Pi CO QL queries.
To provide some protection against
kernel bugs and incorrect locking, Pi CO QL checks pointers with
virt_addr_valid() kernel function before they are dereferenced
to ensure they fall within some mapped range of page areas.
Caught invalid pointers show up in the result set as INVALID_P.
However, the kernel can still corrupt Pi CO QL via e.g. mapped but
incorrect pointers.
#if KERNEL_VERSION > 2.6.32
pinned_vm BIGINT FROM pinned_vm,
#endif
Listing 12: C-like macro condition
configures the relational interface according to the underlying kernel version.
3.8 Deployment and maintenance
Pi CO QL, similar to any loadable kernel module that is not built
into the kernel, requires recompilation and reloading
with each freshly installed version
of the Linux kernel.
The process is simple:
make && sudo insmod1
picoQL.ko
Maintenance action, if any, regards only Pi CO QL's virtual relational
schema, not its source code.
A number of cases where the kernel violates the
assumptions encoded in a struct view will be caught
by the C compiler, e.g. data structure field renaming or
removal.
Pi CO QL's debug mode, will point to the line of the DSL
description where the field's representation
was described.
Maintenance costs comprise
adding C-like macro conditions in parts of
the DSL data structure specifications that differ across kernel
versions (Listing 12).
The macros reference the kernel's version where
the data structure's definition differs.
Then they are interpreted by the DSL compiler, which generates
code according to the underlying kernel version and the
kernel version tag it sees on the macro.
Thus, the cost of evolving Pi CO QL as the kernel changes over time
is minimized.
4 Evaluation
The contribution of Pi CO QL is a relational interface
for simplifying the writing of kernel diagnostics tasks.
Pi CO QL's evaluation involves three axes of analysis, use cases,
quantitative, and consistency.
Use cases examine how Pi CO QL
can aid system diagnostics.
Quantitative evaluation presents the execution
cost
for a variety of queries
with diverse computation requirements
and consistency evaluation discusses
the level of consistency that the presented
use cases achieve.
4.1 Use cases
In the context of the presented use cases we show
how Pi CO QL can be used to aid system diagnostics
activities, such as performance evaluation
and security audits.
4.1.1 Security
Pi CO QL can improve security by expressing queries that spot
suspicious behavior.
For example, normal users, who do not belong
to the admin or sudo groups should rarely be able to
execute processes with
root privileges;
The query in Listing 13 displays processes that
do not obey this rule.
Another security requirement is verifying that processes have rightful
access to the files they open. The query in Listing 14
reports processes that have a file open for reading without the
necessary read access permissions. This query returns forty four
records for our Linux kernel (Table 1).
It can identify files whose access has leaked
(unintentionally or by design) to processes that
have dropped elevated privileges.
SELECT PG.name, PG.cred_uid, PG.ecred_euid,
PG.ecred_egid, G.gid
FROM (
SELECT name, cred_uid, ecred_euid,
ecred_egid, group_set_id
FROM Process_VT AS P
WHERE NOT EXISTS (
SELECT gid
FROM EGroup_VT
WHERE EGroup_VT.base = P.group_set_id
AND gid IN (4,27))
) PG
JOIN EGroup_VT AS G
ON G.base=PG.group_set_id
WHERE PG.cred_uid > 0
AND PG.ecred_euid = 0;
Listing 13: Identify normal users, who execute processes with
root privileges and do not belong to the
admin or
sudo groups
SELECT DISTINCT P.name, F.inode_name, F.inode_mode&400,
F.inode_mode&40, F.inode_mode&4
FROM Process_VT AS P
JOIN EFile_VT AS F
ON F.base=P.fs_fd_file_id
WHERE F.fmode&1
AND (F.fowner_euid != P.ecred_fsuid
OR NOT F.inode_mode&400)
AND (F.fcred_egid NOT IN (
SELECT gid
FROM EGRoup_VT AS G
WHERE G.base = P.group_set_id)
OR NOT F.inode_mode&40)
AND NOT F.inode_mode&4;
Listing 14: Identify files
open for reading by processes that do not currently
have corresponding read access permissions.
Queries like the above could be used to detect
the potential presence of a rootkit by retrieving details
of processes with elevated privileges and unauthorized access
to files.
Advanced rootkits use dynamic kernel object
manipulation attacks.
to mutate non-control data, that is kernel data structures.
Baliga et al. [3] present a number of such possible attacks,
which tamper kernel data structures.
An attack involves adding a malicious binary format in the list
of binary formats used by the kernel to load binary images of processes
and shared libraries.
Pi CO QL queries the list of formats exposing a registered binary
handler's memory addresses of load functions
as shown in Listing 15.
Hardware virtualization environments suffer from
vulnerabilities as well [26].
CVE-2009-3290 [22]
describes how guest VMs, operating at Ring 3 level,
abuse hyper calls, normally issued by Ring 0 processes,
to cause denial of service or to control a KVM host.
The SQL query in Listing 16 retrieves the
current privilege level of each online virtual CPU
and its eligibility to execute hypercalls, and displays
VMs violating hypercalls.
This query could be used to detect the corresponding attacks.
SELECT load_bin_addr, load_shlib_addr, core_dump_addr
FROM BinaryFormat_VT;
Listing 15: Retrieve binary
formats not used by any processes.
SELECT cpu, vcpu_id, vcpu_mode, vcpu_requests,
current_privilege_level, hypercalls_allowed
FROM KVM_VCPU_View;
Listing 16: Return the current
privilege level of each
KVM virtual online
CPU and whether it is allowed to execute hypercalls.
Perez-Botero et al. [26] report vulnerabilities in the KVM
hypervisor due to lack of data structure state validation
( CVE-2010-0309 [23]).
Lack of data validation in the programmable
interval timer ( PIT) data structures allowed a malicious
VM to drive a full host operating system crash by attempting
to read from /dev/port, which should only be used for writing. The query
in Listing 17 provides a view of the PIT channel state
array, which mirrors the permitted access modes
as array indexes; read access is masked to an index that
falls out of bounds and triggers the crash when later
dereferenced.
Accessing this information in the form of a simple SQL
query can help with automatic validation of data structure state during testing
and prevent vulnerabilities of this kind.
SELECT kvm_users, APCS.count, latched_count, count_latched,
status_latched, status, read_state, write_state, rw_mode,
mode, bcd, gate, count_load_time
FROM KVM_View AS KVM
JOIN EKVMArchPitChannelState_VT AS APCS
ON APCS.base=KVM.kvm_pit_state_id;
Listing 17: Return the contents of the
PIT channel state array.
4.1.2 Performance
Regulating system resources is a requirement for system stability.
Pi CO QL can provide a custom view of a system's resources and help
discover conditions that hinder its performance. The query in
Listing 18 extracts a view of the page cache detailing
per file information for KVM related processes.
It shows how effectively virtual machine I/O requests
are serviced by the host page cache assuming that the guest
operating system is executing direct I/O calls.
One of Pi CO QL's advantages is its extensible
ability to offer a unified view of information across the kernel.
The combined use of diagnostic tools can point
to the solution in most situations, but for some of those
situations, Pi CO QL alone provides the answer.
For instance, consider Listing 19, which
shows how to combine data structures
to extract detailed performance views of and across important
kernel subsystems, namely process, CPU, virtual memory, file,
and network.
Adding to this list means only expanding the representation
of data structures.
The rationale behind Pi CO QL is to leverage
the knowledge of a widely-used data management
language for diagnosing issues evident in the system's
data structures.
SELECT name, inode_name, file_offset, page_offset, inode_size_bytes,
pages_in_cache, inode_size_pages, pages_in_cache_contig_start,
pages_in_cache_contig_current_offset, pages_in_cache_tag_dirty,
pages_in_cache_tag_writeback, pages_in_cache_tag_towrite,
FROM Process_VT AS P
JOIN EFile_VT AS F
ON F.base=P.fs_fd_file_id
WHERE pages_in_cache_tag_dirty
AND name LIKE `%kvm%';
Listing 18: Present fine-grained page cache information per file for
KVM related processes.
SELECT name, pid, gid, utime, stime, total_vm, nr_ptes, inode_name,
inode_no, rem_ip, rem_port, local_ip, local_port, tx_queue, rx_queue
FROM Process_VT AS P
JOIN EVirtualMem_VT AS VM
ON VM.base = P.vm_id
JOIN EFile_VT AS F
ON F.base = P.fs_fd_file_id
JOIN ESocket_VT AS SKT
ON SKT.base = F.socket_id
JOIN ESock_VT AS SK
ON SK.base = SKT.sock_id
WHERE proto_name LIKE `tcp';
Listing 19: Present a view of socket files' state.
Performance debugging is a complex task, which is
usually undertaken by observing the symptoms,
forming a theory, and checking it using appropriate tools.
Pi CO QL significantly simplifies the final step.
Let us consider an example drawn from reference [13],
which regards retrieving
per process memory mappings including virtual memory, RSS,
private anonymous memory, permissions, and mapped file.
In this case, Gregg [13,p. 307] proposes the use of pmap
to see this information.
We present the corresponding Pi CO QL
query in Listing 20.
SELECT vm_start, anon_vmas, vm_page_prot, vm_file
FROM Process_VT AS P
JOIN EVirtualMem_VT AS VT
ON VT.base = P.vm_id;
Listing 20: Present virtual memory mappings per process.
Table 1: Present SQL query execution cost for 10 diverse queries.
PICO QL query
| Query label
| LOC
| Records returned
| Total set size (records)
| Execution space ( KB)
| Execution time (ms)
| Record evaluation time (μs)
|
Listing 9
| Relational join
| 10
| 80
| 683929
| 1667.10
| 231.90
| 0.34
|
Listing 16
| Join - virtual table context switch (×2)
| 3(9)
| 1
| 827
| 33.27
| 1.60
| 1.94
|
Listing 17
| Join - virtual table context switch (×3)
| 4(10)
| 1
| 827
| 32.61
| 1.66
| 2.01
|
Listing 13
| Nested subquery ( FROM, WHERE)
| 13
| 0
| 132
| 27.37
| 0.25
| 1.89
|
Listing 14
| Nested subquery ( WHERE), OR evaluation,
bitwise logical operations, DISTINCT records
| 13
| 44
| 827
| 3445.89
| 10.69
| 12.93
|
Listing 18
| Page cache access, string constraint evaluation
| 6
| 16
| 827
| 26.33
| 0.57
| 0.69
|
Listing 19
| Arithmetic operations, string constraint evaluation
| 11
| 0
| 827
| 76.11
| 0.59
| 0.71
|
SELECT 1;
| Query overhead
| 1
| 1
| 1
| 18.65
| 0.05
| 50.00
|
4.2 Quantitative evaluation
Pi CO QL's quantitative evaluation presents the
execution efficiency of SQL queries in the Linux kernel
(Table 1). We compute the query
execution time as the difference
with cycle-accurate precision between two timestamps, acquired at the end
and at the start of each query respectively. Tests were carried out in
an otherwise idle machine (1 GB RAM, 500 GB disk, 2
cores) running the Linux kernel (v3.6.10).
The mean of at least three runs is reported for each query.
The rows in Table 1 contain queries with diverse characteristics
and columns contain query properties and measurement metrics.
Specifically, columns include references to queries presented in
the paper, a label characterizing each query's execution plan,
the lines of SQL code for expressing each query, the
number of records returned, the total set size evaluated, the
execution space and time,
and the average time spent for each record.
Table 1 indicates the
programming effort for writing some representative
queries in terms of LOC.
As there is no standard way to count SQL lines
of code, we count logical lines of code,
that is each line that begins with an SQL keyword
excluding AS, which can be omitted, and the various
WHERE clause binary comparison operators.
At a minimum, SQL requires two lines of code to retrieve
some information ( SELECT...FROM...;).
The Pi CO QL evaluation queries listed in Table 1
require between six and thirteen LOC.
This is not a small figure, but it is a price we pay for
sophisticated queries like most of those used in our evaluation.
Moreover, a large part of this programming cost can be
abstracted away since queries can be composed from other queries leveraging
standard relational views (Listing 7).
This is the case with Listings 16 and 17 whose LOC
drop to less than half of the original.
Finally, PICO QL provides an advantage of qualitative nature:
it allows users to focus on the information retrieval aspects of an analysis task.
This can not be measured by LOC.
Query measurements allow a number of observations.
First, query evaluation appears to scale well
as total set size increases.
The average amount of time spent for each
record in the relational join query
(Listing 9) is the smallest
beating even the average record evaluation time of the
query performing arithmetic operations (Listing 19).
The cartesian product evaluated for the former
approximates 700,000 records.
Second, nested subqueries
(Listing 13)
perform well as opposed
to
DISTINCT evaluation (Listing 14), which seems to be the
source of large average execution time per record.
Third, multiple page cache accesses
(Listing 18) during a query
evaluation are affordable incurring the
second best record evaluation time and topping even
arithmetic operations (Listing 19), which, as expected,
are very efficient.
According to the memory space measurements
during query execution, Pi CO QL has modest
memory space requirements for most query plans.
We distinguish two queries due to their significantly larger
memory space footprint.
The relational join query (Listing 9)
requires 1.5 MB but this can
be justified by the evaluated total set size, which approximates
700 K records.
The second query with large memory space requirements,
almost 3.5 MB,
is the one involving DISTINCT evaluation (Listing 14).
In this case, we would expect a more modest footprint, since
the query returns 40 records; the DISTINCT algorithm
is evaluated on this set.
4.3 Consistency evaluation
Most of our use cases depend on non-blocking
synchronization, perform incremental lock acquisitions and,
involve unprotected
kernel data structure fields, thus the extracted views do not
reflect a consistent state.
The distance between the obtained
view and a consistent view depends on
the changes performed on the referenced data structures
from other CPUs a) between incremental data structure
lock acquisitions and b) to non-protected data structure
fields including those referenced by RCU-protected pointers.
However, consistency does not matter too much for a number of
scenarios we tackle, such as performance profiling.
The queries in
Listings 9, 11, 18, 19,
and 20
might provide inconsistent views, but the views will
still be meaningful in that they communicate real values
of system resources.
On the other hand, for data structures that use proper locking Pi CO QL
provides a consistent view of their contents.
For instance, the query in Listing 15 provides a consistent
view of a kernel's list of binary formats.
The list is protected by a read-write lock and Pi CO QL will never build
a view of an inconsistent list.
Each element in the list may change independently, however, this is
no different from the existing kernel code, where there is no mechanism
to guarantee that the contents of the elements are consistent with the list
structure itself.
5 Related work
Our work is related to relational interfaces
within operating systems and kernel diagnostic tools.
5.1 Operating system relational interfaces
Relations are part of the structure of some operating systems.
The Barrelfish operating system features
a general purpose system knowledge base ( SKB) used for many
core purposes, such as declarative device
configuration [29] and cache-aware
placement of relational database operators [12]
among others.
The knowledge base runs as a user-level process, collects
information from the kernel about the various system services,
and provides an interface to a constraint logic programming
engine ( CLP) written in Prolog.
The collected information forms the input for the CLP
algorithm and the produced solution is used to derive
kernel data structures for the appropriate system service.
Barrelfish's logic engine is of equivalent expressivity to relational calculus.
The Pick operating system [5]
is built around a multivalued
database representation of hash files, which
form nested representations.
The data manipulation language includes access queries
with two commands LIST, which can express
selection using a syntax similar to a WHERE clause, and SORT.
Pick features no data typing and data integrity is left to the
application programmer.
In contrast to the Barrelfish SKB and Pick, which use a
declarative specification to derive kernel data structures,
Pi CO QL represents existing kernel data structures
in relational terms and provides SQL queries
on them through their relational representation.
Relational-like interfaces exist at the operating system
level for carrying out validation tasks.
The work by Gunawi et al. [14] contributes
a declarative file system checker that improves
over e2fsck [20],
mainly because of its high-level abstraction.
It imports the file system's metadata in a My SQL
database, carries out file system integrity checks by means of
SQL queries, and performs repairs accordingly.
Pi CO QL would alleviate the need for storing the file system's metadata
in a database, but would require loading the metadata in memory.
For a disk-based file system this would create a major overhead,
but not for a main-memory one.
In a potential near future where non-volatile RAM substitutes
DRAM Pi CO QL could be a useful tool for verifying
main memory file systems [24].
5.2 Kernel diagnostic tools
Kernel diagnostic tools implement a variety of approaches.
We discuss tools for dynamic analysis of production
systems in terms of their instrumentation techniques and
analysis methods.
Program instrumentation techniques
augment a system's code with special-purpose code, typically in an
automated manner, to create system execution metadata.
Dynamic or binary code instrumentation that replaces or
rewrites binary code is used more widely than static or
source code instrumentation. Tools like
DTrace [7] and SystemTap [27] perform
dynamic or binary code instrumentation. In contrast,
LTTng [9] performs automated source code
instrumentation. LTTng is a tracer; it records statically
determined events in trace buffers written to files
and offers post-mortem analysis. Source code instrumentation
requires a fresh kernel build for each tracing attempt.
Binary code instrumentation tools are of varying nature.
DTrace employs a virtual machine and a set of kernel modules
that manage a probe infrastructure in the Solaris kernel.
SystemTap is a meta-instrumentation tool,
which compiles
scripts written in the SystemTap procedural language into
instrumenting loadable kernel modules.
System execution metadata typically capture events, but
KLASY [34] provides data
structure selection and filtering in C.
KLASY is a dynamic aspect-oriented
system.
Pi CO QL consumes directly lower level operating
system data, that is kernel data structures.
Pi CO QL's hook technique is probe-based
but very different than typical probe-based
instrumentation techniques, like DTrace's, in three ways.
First, as mentioned, Pi CO QL hooks to
data structures; it does not instrument events as is the
typical case with most tools like SystemTap and DTrace.
Second, Pi CO QL requires a single hook for each data
structure in order to track it.
Event-based tools generate even thousands
of probes to achieve instrumentation coverage [7].
Third, Pi CO QL's hooking is performed
manually at the module's source code.
Its footprint is negligible compared to automatic binary
instrumentation of event-based tools.
Consequently, Pi CO QL incurs
zero performance overhead in idle state, because Pi CO QL's
"probes" are actually part of the loadable module and not part of
the kernel.
The other mentioned tools also achieve zero probe effect.
When Pi CO QL is active, the performance overhead is that
related to evaluating the input queries and using the required data
structures.
Analysis methods
The tools we cited employ various analysis methods for dynamic analysis.
We could not find art that allows relational queries to kernel data
structures in the manner provided by Pi CO QL. DTrace
and SystemTap define an event-based procedural language
for expressing analysis tasks. Dynamic aspect-oriented tools like
KLASY define pointcuts, that is
predicates, which select matching function calls and/or data structure
fields.
Windows-based operating systems provide the
Windows Management Instrumentation ( WMI) [33]
infrastructure, which provides access to management data and operations.
Management data are divided in namespaces, which contain classes.
Object associations are modeled in association classes instead of
embedded object references.
WMI supports a query language, WQL, which implements a
subset of SQL. A WQL query targets a specific WMI class
hierarchy; joins are not allowed, nor cross-namespace queries or associations.
WQL is in fact syntactic sugar over the object-oriented WMI data model.
In contrast, Pi CO QL exposes a relational model view of the underlying
hierarchical data model. This is what makes it queryable through standard
SQL.
6 Discussion
The layered design of Pi CO QL's representation and user interface,
provide flexibility in the types of applications that it can support.
The amount of effort for writing struct views in the Pi CO QL DSL
varies mostly in the level of knowledge of the kernel
needed and much less in terms of writing the DSL description.
In fact, for each line of code of a kernel data structure definition, the DSL
specification requires one line of code for the struct view
definition, that is to represent fields in columns.
The virtual table definition adds six lines of code on average
to the total cost.
To eliminate this effort completely, we examine deriving data structure specifications
automatically from data structure definitions or appropriate annotations.
This is an avenue for future work.
Pi CO QL provides a separation of concerns between
an operating system's operation and diagnostics.
C is appropriate for programming the kernel, whereas
SQL is appropriate
for modelling a data schema and performing analysis tasks.
With Pi CO QL we can invest in a relational representation for
understanding kernel data structures and extracting knowledge from
them.
Queries in Pi CO QL can execute on demand.
However, users cannot specify execution points
where queries should automatically be evaluated.
A partial solution would be to combine Pi CO QL
with a facility like cron to provide a form of
periodic execution.
Conditional query execution would require
kernel instrumentation.
We distinguish two avenues for further research related to this work.
First, we can improve Pi CO QL's usability, safety, and consistency
by adapting our treatment of synchronization.
In particular, to provide queries
that acquire locks in the correct order,
our plan is to leverage the rules
of the kernel's lock validator [15] to establish
a correct query plan at our module's respective
callback function at runtime.
The lock validator finds and reports many synchronization
problems.
To enhance consistency of kernel state views, our plan is to provide
lockless queries to snapshots of kernel data structures.
Across data structures protected through blocking synchronization,
this approach would provide consistent kernel state views;
for the rest, it would minimize the gap to consistency.
Second, we plan to investigate locking intricacies during
SQL queries to kernel data structures.
Locking dependencies have important repercussions
to safety and performance; examining these for
a new kernel data access model might offer insight
with respect to the way we use locks in the kernel
or in relational queries.
7 Conclusions
We present a relational interface to accessible Unix kernel
data structures supported by an implementation for the Linux kernel.
Our work uses SQL queries to provide a custom high-level
view of low-level system information,
which is hidden in complex data structures.
The implementation is type-safe and secure.
We evaluate the potential benefits of our work and
exemplify Pi CO QL's contribution in
diagnosing security
vulnerabilities and in obtaining non-trivial views of
system resources.
Our evaluation demonstrates that this
approach is efficient and scalable by measuring query execution cost.
In this paper we present a small number of queries on top
of Pi CO QL's relational interface, which currently amounts to
40 virtual tables.
However, the kernel's relational representation
with Pi CO QL is only limited by the kernel's data structures;
more than 500 are directly available.
In fact, it is easy for everyone to roll their own probes by
following the tutorial available online [18].
8 Availability
Pi CO QL is open source software distributed under the
Apache license.
Code and other project data are available through Github at
https://github.com/mfragkoulis/PiCO_QL.
This research has been co-financed by the European Union
(European Social Fund - ESF) and Greek national funds
through the Operational Program "Education and Lifelong Learning"
of the National Strategic Reference Framework (NSRF) -
Research Funding Program: Thalis -
Athens University of Economics and Business -
Software Engineering Research Platform.
We would like to thank Georgios Gousios and the reviewers
for their comments on the paper and in particular our shepherd
Timothy Roscoe, whose comments have helped us clarify
important aspects of our work.
References
- [1]
-
G. Allen and M. Owens.
The Definitive Guide to SQLite, Second Edition.
Apress, Berkeley, CA, USA, 2010.
- [2]
-
M. J. Bach.
The design of the UNIX operating system.
Prentice-Hall, Inc., Upper Saddle River, NJ, USA, 1986.
- [3]
-
A. Baliga, V. Ganapathy, and L. Iftode.
Automatic inference and enforcement of kernel data structure
invariants.
In Proceedings of the 2008 Annual Computer Security Applications
Conference, ACSAC '08, pages 77-86, Washington, DC, USA, 2008. IEEE
Computer Society.
- [4]
-
M. Balmer.
Lua in the NetBSD kernel.
In Research Room @ FOSDEM 2013, Brussels, Belgium, 02 2013.
- [5]
-
R. J. Bourdon.
The PICK Operating System: A Practical Guide.
Addison-Wesley Longman Publishing Co., Inc., Boston, MA, USA, 1986.
- [6]
-
D. Bovet and M. Cesati.
Understanding The Linux Kernel.
Oreilly & Associates Inc, 2005.
- [7]
-
B. M. Cantrill, M. W. Shapiro, and A. H. Leventhal.
Dynamic instrumentation of production systems.
In A. Arpaci-Dusseau and R. Arpaci-Dusseau, editors, Proceedings
of the USENIX 2004 Annual Technical Conference, ATEC '04, pages 15-28,
Berkeley, CA, USA, 2004. USENIX Association.
- [8]
-
C. J. Date and H. Darwen.
A guide to the SQL standard (4th ed.): a user's guide to the
standard database language SQL.
Addison-Wesley Longman Publishing Co., Inc., Boston, MA, USA, 1997.
- [9]
-
M. Desnoyers and M. R. Dagenais.
The LTTng tracer: A low impact performance and behavior monitor for
GNU/Linux.
In Proceedings of the 2006 Ottawa Linux Symposium (OLS), 2006.
- [10]
-
M. Fragkoulis, D. Spinellis, and P. Louridas.
An interactive relational interface to main-memory data structures.
Technical report, Department of Management Science and Technology,
Athens University of Economics and Business, February 2014.
Available online February 2014.
- [11]
-
J. Frohn, G. Lausen, and H. Uphoff.
Access to objects by path expressions and rules.
In Proceedings of the 20th International Conference on Very
Large Data Bases, VLDB '94, pages 273-284, San Francisco, CA, USA, 1994.
Morgan Kaufmann Publishers Inc.
- [12]
-
J. Giceva, T.-I. Salomie, A. Schüpbach, G. Alonso, and T. Roscoe.
Cod: Database / operating system co-design.
In CIDR, Sixth Biennial Conference on Innovative Data Systems
Research, Asilomar, CA, USA, January 6-9, 2013, Online Proceedings, 2013.
- [13]
-
B. Gregg.
Systems performance: entreprise and the cloud.
Prentice Hall, Upper Saddle River, NJ, 2013.
- [14]
-
H. S. Gunawi, A. Rajimwale, A. C. Arpaci-Dusseau, and R. H. Arpaci-Dusseau.
SQCK: a declarative file system checker.
In Proceedings of the 8th USENIX conference on Operating systems
design and implementation, OSDI'08, pages 131-146, Berkeley, CA, USA, 2008.
USENIX Association.
- [15]
-
I. Molnar and A. van de Ven.
Runtime locking correctness validator, 2014.
Available online Current March 2014.
- [16]
-
A. Kivity, Y. Kamay, D. Laor, U. Lublin, and A. Liguori.
KVM: the Linux virtual machine monitor.
In OLS '07: The 2007 Ottawa Linux Symposium, pages 225-230,
July 2007.
- [17]
-
S. Lampoudi and D. M. Beazley.
SWILL: A simple embedded web server library.
In C. G. Demetriou, editor, Proceedings of the FREENIX Track:
2002 USENIX Annual Technical Conference, June 10-15, 2002, Monterey,
California, USA, pages 19-27. USENIX, 2002.
- [18]
-
M. Fragkoulis.
The PiCO QL Linux kernel module tutorial, 2013.
Available online January 2013.
- [19]
-
P. E. McKenney and J. D. Slingwine.
Read-copy update: Using execution history to solve concurrency
problems.
In Parallel and Distributed Computing and Systems, pages
509-518, Las Vegas, NV, October 1998.
- [20]
-
M. K. Mckusick, W. N. Joy, S. J. Leffler, and R. S. Fabry.
Fsck - The UNIX File System Check Program, April 1986.
- [21]
-
E. Meijer.
The world according to LINQ.
Commun. ACM, 54(10):45-51, Oct. 2011.
- [22]
-
National Institute of Standards and Technology.
CVE-2009-3290, National Vulnerability Database, 2009.
September 22, 2009.
- [23]
-
National Institute of Standards and Technology.
CVE-2010-0309, National Vulnerability Database, 2010.
January 12, 2010.
- [24]
-
S. Oikawa.
Integrating memory management with a file system on a non-volatile
main memory system.
In Proceedings of the 28th Annual ACM Symposium on Applied
Computing, SAC '13, pages 1589-1594, New York, NY, USA, 2013. ACM.
- [25]
-
C. Olston, B. Reed, U. Srivastava, R. Kumar, and A. Tomkins.
Pig Latin: A not-so-foreign language for data processing.
In Proceedings of the 2008 ACM SIGMOD International Conference
on Management of Data, SIGMOD '08, pages 1099-1110, New York, NY, USA,
2008. ACM.
- [26]
-
D. Perez-Botero, J. Szefer, and R. B. Lee.
Characterizing hypervisor vulnerabilities in cloud computing servers.
In Proceedings of the 2013 international workshop on Security in
cloud computing, Cloud Computing '13, pages 3-10, New York, NY, USA, 2013.
ACM.
- [27]
-
V. Prasad, W. Cohen, F. C. Eigler, M. Hunt, J. Keniston, and B. Chen.
Locating system problems using dynamic instrumentation.
In Proceedings of the 2005 Ottawa Linux Symposium (OLS), 2005.
- [28]
-
R. E. Sanders.
ODBC 3.5 Developer's Guide.
McGraw-Hill Professional, 1998.
- [29]
-
A. Schüpbach, A. Baumann, T. Roscoe, and S. Peter.
A declarative language approach to device configuration.
In Proceedings of the Sixteenth International Conference on
Architectural Support for Programming Languages and Operating Systems,
ASPLOS XVI, pages 119-132, New York, NY, USA, 2011. ACM.
- [30]
-
A. Silberschatz, H. Korth, and S. Sudarshan.
Database Systems Concepts.
McGraw-Hill, Inc., New York, NY, USA, 5 edition, 2006.
- [31]
-
The SQLite team.
The SQLite Query Planner Release 3.8.0., 2014.
Available online Current March 2014.
- [32]
-
The SQLite team.
The virtual table mechanism of SQLite, 2014.
Available online Current March 2014.
- [33]
-
C. Tunstall and G. Cole.
Developing WMI solutions: a guide to Windows management
instrumentation.
The Addison-Wesley Microsoft Technology Series. Addison-Wesley, 2003.
- [34]
-
Y. Yanagisawa, K. Kourai, and S. Chiba.
A dynamic aspect-oriented system for OS kernels.
In Proceedings of the 5th international conference on Generative
programming and component engineering, GPCE '06, pages 69-78, New York, NY,
USA, 2006. ACM.
Footnotes:
1
insmod is the Linux kernel's facility for dynamic loading of
kernel modules.
File translated from
TEX
by
TTH,
version 4.03.
On 29 May 2014, 17:41.
