ckjm - A Tool for Calculating Chidamber and Kemerer Java Metrics

Diomidis Spinellis
Department of Management Science and Technology
Athens University of Economics and Business
Athens, Greece
dds@aueb.gr

Introduction

The program ckjm calculates Chidamber and Kemerer object-oriented metrics by processing the bytecode of compiled Java files. The program calculates for each class the following six metrics, and displays them on its standard output, following the class's name:

WMC: Weighted methods per class
DIT: Depth of Inheritance Tree
NOC: Number of Children
CBO: Coupling between object classes
RFC: Response for a Class
LCOM: Lack of cohesion in methods
Ca: Afferent coupling (not a C&K metric)
NPM: Number of Public Methods for a class (not a C&K metric)

I wrote this program out of frustration over the lack of reliable programs to calculate the Chidamber and Kemerer object-oriented metrics. The programs I found on the web were either incomplete (they calculated only some of the metrics), or unreliable (they calculated results that were obviously wrong), or extremely inefficient (they required GBs of RAM and hours of processing). Ckjm is mean and lean, following the Unix tradition of doing one thing well. It will not automatically recurse directories looking for the files you want measured, it does not offer a GUI and fancy diagrams (or even an XML output facility), and it calculates only few metrics other than the six ones specified by Chidamber and Kemerer. However, it does this job thoroughly, and efficiently: on a 1.6GHz Pentium-M machine version 1.1 of the tool processed the 33MB of the Eclipse 3.0 jar files (19717 classes) in 95 seconds.

To run the program you simply specify the class files (or pairs of jar/class files) on its command line or standard input. The program will produce on its standard output a line for each class containing the complete name of the class and the values of the corresponding class metrics. This operation model allows the tool to be easilly extended using textual pre and post processors.

Operation

To run ckjm you must run java with the -jar flag, providing as its argument the location of the file ckjm.jar. Next, you can specify as arguments the Java class files you want to analyze.
Example:

java -jar /usr/local/lib/ckjm-1.5.jar build/classes/gr/spinellis/ckjm/*.class

(Replace the sequence /usr/local/lib/ckjm-1.5.jar with the actual path and filename of the ckjm version you are using.)

The command's output will be a list of class names (prefixed by the package they are defined in), followed by the corresponding metrics for that class: WMC, DIT, NOC, CBO, RFC, LCOM, Ce, and NPM.

gr.spinellis.ckjm.ClassMetricsContainer 3 1 0 3 18 0 2 2
gr.spinellis.ckjm.MethodVisitor 11 1 0 21 40 0 1 8
gr.spinellis.ckjm.CkjmOutputHandler 1 1 0 1 1 0 3 1
gr.spinellis.ckjm.ClassMetrics 24 1 0 0 33 196 6 23
gr.spinellis.ckjm.MetricsFilter 7 1 0 6 30 11 2 5
gr.spinellis.ckjm.ClassVisitor 13 1 0 14 71 34 2 9
gr.spinellis.ckjm.ClassMap 3 1 0 1 21 0 0 2
gr.spinellis.ckjm.PrintPlainResults 2 1 0 2 8 0 1 2

If the classes are located in a jar archive, you can specify as a single argument the name of the archive, followed by a space, followed by the name of the class in the archive.

java -jar /usr/local/lib/ckjm.jar 'ant-jai.jar org/apache/tools/ant/types/optional/image/Text.class'

Finally, instead of specifying the classes to be analyszed as the command's arguments, you pass them (as class files, or as jar file, class file pairs) on the command's standard input. The following example will process all class files located in the build directory.

find build -name '*.class' -print | java -jar /usr/local/lib/ckjm.jar

The program, by default, will not take into account classes that belong to the Java SDK packages. The command-line option switch -s, can be used to enable this processing.

Using Pipelines to Select Classes

Using the Unix find command to select the class files to process, provides infinite flexibility.

You can specify a range of modification times for the files. As an example, the following command will print the metrics of the class files modified during the last week.
find build -name '*.class' -mtime -7 -print | java -jar /usr/local/lib/ckjm.jar
You can filter out specific patterns, either with the GNU find's regular expression options, or by piping its results through grep. As an example, the following command will not print metrics for internal classes (their name contains a $ character).
find build -name '*.class' | fgrep -v '$' | java -jar /usr/local/lib/ckjm.jar
You process contents from several directories. As an example, the following command will process the class files located in the build and lib directories.
find build lib -name '*.class' -print | java -jar /usr/local/lib/ckjm.jar
You generate the list of class files, by processing the list of contents of a jar file. The following example will calculate the metrics for all class files located in the file ant.jar (the sed step prints only the lines ending in .class, replacing the beginning of the line with the name of the jar file, ant.jar. .
jar tf ant.jar |
sed -n '/\.class$/s/^/ant.jar /p' |
java -jar /usr/local/lib/ckjm.jar
You can also combine the above patterns (and more) into more sophisticated file location and selection options. The following example, will process the classes of all jar files located in the lib directory.
for i in lib/*.jar
do
jar tf $i |
sed -n "/\.class$/s,^,$i ,p"
done |
java -jar /usr/java/ckjm-1.3/build/ckjm-1.3.jar

(Replace the sequence /usr/java/ckjm-1.3/build/ckjm-1.3.jar with the actual path and filename of the ckjm version you are using.)

Using Pipelines to Format the Output

The output of ckjm is textual: one line for each class, each line contains 8 space-separated fields: the classname and the 7 metrics. If your application requires something more fancy, it is easy to post-process the ckjm output to obtain it. For example, the following sed script will generate XML output.

#!/bin/sed -f
1i\
<?xml version="1.0" ?>\
<ckjm>
s/^/<metric><classname>/
s/ /<\/classname><WMC>/
s/ /<\/WMC><DIT>/
s/ /<\/DIT><NOC>/
s/ /<\/NOC><CBO>/
s/ /<\/CBO><RFC>/
s/ /<\/RFC><LCOM>/
s/ /<\/LCOM><Ca>/
s/ /<\/Ca><NPM>/
s/$/<\/NPM><\/metric>/
$a\
</ckjm>

If you name the script ckjm2xml and make it executable, you can generate XML output and save it into a file as follows.

java -jar /usr/local/lib/ckjm.jar *.class | ckjm2xml >metrics.xml

(Replace the sequence /usr/local/lib/ckjm.jar with the actual path and filename of the ckjm version you are using.)
Here is an example of the output.

<?xml version="1.0" ?>
<ckjm>
<metric><classname>gr.spinellis.ckjm.ClassMetricsContainer</classname><WMC>3</WMC><DIT>1</DIT><NOC>0</NOC><CBO>3</CBO><RFC>18</RFC><LCOM>0</LCOM><Ca>2</Ca><NPM>2</NPM></metric>
<metric><classname>gr.spinellis.ckjm.MethodVisitor</classname><WMC>11</WMC><DIT>1</DIT><NOC>0</NOC><CBO>21</CBO><RFC>40</RFC><LCOM>0</LCOM><Ca>1</Ca><NPM>8</NPM></metric>
<metric><classname>gr.spinellis.ckjm.CkjmOutputHandler</classname><WMC>1</WMC><DIT>1</DIT><NOC>0</NOC><CBO>1</CBO><RFC>1</RFC><LCOM>0</LCOM><Ca>3</Ca><NPM>1</NPM></metric>
<metric><classname>gr.spinellis.ckjm.ClassMetrics</classname><WMC>24</WMC><DIT>1</DIT><NOC>0</NOC><CBO>0</CBO><RFC>33</RFC><LCOM>196</LCOM><Ca>6</Ca><NPM>23</NPM></metric>
<metric><classname>gr.spinellis.ckjm.MetricsFilter</classname><WMC>7</WMC><DIT>1</DIT><NOC>0</NOC><CBO>6</CBO><RFC>30</RFC><LCOM>11</LCOM><Ca>2</Ca><NPM>5</NPM></metric>
<metric><classname>gr.spinellis.ckjm.ClassVisitor</classname><WMC>13</WMC><DIT>1</DIT><NOC>0</NOC><CBO>14</CBO><RFC>71</RFC><LCOM>34</LCOM><Ca>2</Ca><NPM>9</NPM></metric>
<metric><classname>gr.spinellis.ckjm.ClassMap</classname><WMC>3</WMC><DIT>1</DIT><NOC>0</NOC><CBO>1</CBO><RFC>21</RFC><LCOM>0</LCOM><Ca>0</Ca><NPM>2</NPM></metric>
<metric><classname>gr.spinellis.ckjm.PrintPlainResults</classname><WMC>2</WMC><DIT>1</DIT><NOC>0</NOC><CBO>2</CBO><RFC>8</RFC><LCOM>0</LCOM><Ca>1</Ca><NPM>2</NPM></metric>
</ckjm>

To copy the ckjm's output to the Microsoft Windows clipboard to later paste the results into an MS-Word table, simply pipe the output of ckjm to the winclip command of the Outwit tool suite.

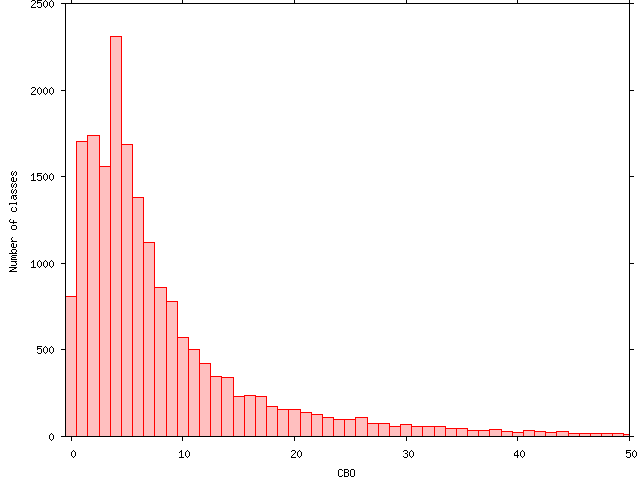

You can also plot the results in various formats by using gnuplot (http://www.gnuplot.info). Here is a diagram depicting the distribution of the CBO metric within the classes of Eclipse (http://www.eclipse.org).

Metric Descriptions

The metrics ckjm will calculate and display for each class are the following.

WMC - Weighted methods per class: A class's weighted methods per class WMC metric is simply the sum of the complexities of its methods. As a measure of complexity we can use the cyclomatic complexity, or we can abritrarily assign a complexity value of 1 to each method. The ckjm program assigns a complexity value of 1 to each method, and therefore the value of the WMC is equal to the number of methods in the class.
DIT - Depth of Inheritance Tree: The depth of inheritance tree (DIT) metric provides for each class a measure of the inheritance levels from the object hierarchy top. In Java where all classes inherit Object the minimum value of DIT is 1.
NOC - Number of Children: A class's number of children (NOC) metric simply measures the number of immediate descendants of the class.
CBO - Coupling between object classes: The coupling between object classes (CBO) metric represents the number of classes coupled to a given class (efferent couplings, Ce). This coupling can occur through method calls, field accesses, inheritance, arguments, return types, and exceptions.
RFC - Response for a Class: The metric called the response for a class (RFC) measures the number of different methods that can be executed when an object of that class receives a message (when a method is invoked for that object). Ideally, we would want to find for each method of the class, the methods that class will call, and repeat this for each called method, calculating what is called the transitive closure of the method's call graph. This process can however be both expensive and quite inaccurate. In ckjm, we calculate a rough approximation to the response set by simply inspecting method calls within the class's method bodies. This simplification was also used in the 1994 Chidamber and Kemerer description of the metrics.
LCOM - Lack of cohesion in methods: A class's lack of cohesion in methods (LCOM) metric counts the sets of methods in a class that are not related through the sharing of some of the class's fields. The original definition of this metric (which is the one used in ckjm) considers all pairs of a class's methods. In some of these pairs both methods access at least one common field of the class, while in other pairs the two methods to not share any common field accesses. The lack of cohesion in methods is then calculated by subtracting from the number of method pairs that don't share a field access the number of method pairs that do. Note that subsequent definitions of this metric used as a measurement basis the number of disjoint graph components of the class's methods. Others modified the definition of connectedness to include calls between the methods of the class. The program ckjm follows the original (1994) definition by Chidamber and Kemerer.
Ca - Afferent couplings: A class's afferent couplings is a measure of how many other classes use the specific class. Ca is calculated using the same definition as that used for calculating CBO (Ce).
NPM - Number of Public Methods: The NPM metric simply counts all the methods in a class that are declared as public. It can be used to measure the size of an API provided by a package.

Measurement Details

The original definition of the metrics, and implementation details of both the program, and the Java language provide some leeway on how the metrics are measured. The following list contains the most important decisions. These are marked in the source code with a comment, such as the following.

/* Measuring decision: couple interfaces */

Interfaces are measured when considering a class's coupling. Rationale: changes to the interface may well require changes to the class.
Use of Java SDK classes (java.*, javax.*, and some others) does not count toward a class's coupling. Rationale: the Java SDK classes are relatively stable, in comparison to the rest of the project. A command line argument switch (-s) is available for including the Java SDK classes into the calculation.
Calls to JDK methods are included in the RFC calculation. Rationale: the method calls increase the class's complexity.
The classes used for catching exceptions contribute toward the class's coupling measurements. Rationale: at the point where an exception is caught a new object of the corresponding type is instantiated.
The complexity of each method is considered 1, when calculating WMC. Rationale: ease of implementation, and compatibility with Chidamber and Kemerer.
LCOM is calculated following the 1994 paper description, and not by looking at disjoint graph components. Rationale: ease of implementation, and compatibility with Chidamber and Kemerer.
RFC is calculated up to the first method call level, and not through the transitive closure of all method calls. Rationale: ease of implementation, and compatibility with Chidamber and Kemerer.
A class's own methods contribute to its RFC. Rationale: the original Chidamber and Kemerer article describes RFC as a union of the set of methods called by the class and the set of methods in the class.

Using Ckjm With Ant

First define the ant task in your build.xml file. The ckjm jar file should be in the classpath.

Now you can make use of the ckjm task. The attributes of the ckjm task are the following:

format: 'plain' or 'xml'. Default is 'plain'
outputfile: Required. Output will be written to outputfile.
classdir: Required. Base directory which contains the class files.

The ckjm task supports the nested elements <include> and <exclude>, which can be used to select the class files and the nested element <extdirs>, which is used to specify other class files participating in the inheritance hierarchy. The elements support path-like structures (http://ant.apache.org/manual/using.html#path). Example usage:

You can use an XSL stylesheet to generate an HTML report from the XML output file. Example:

The distribution contains in the xsl directory two sample XSL files. Here is a complete example of a build.xml file.

If the analyzed files form part of a class hierarchy of other class files that are not part of the analysis, then the extdirs path-like structure (http://ant.apache.org/manual/using.html#path) of the ckjm task must be set to point to the directory containing the corresponding jar files. This will internally set the java.ext.dirs property so that ckjm can locate the jar files containing those classes.

Web Links and Acknowledgements

Derived Software

CKJM Pro (http://gromit.iiar.pwr.wroc.pl/p_inf/ckjm/) adds many quality-oriented metrics

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

Bibliography

Version History

Version 1.9 2012-04-04

Integrated BCEL 5.2 (Andre Fleischer).
Fixed java.lang.NoSuchMethodError: org.apache.bcel.classfile.JavaClass.getSuperClasses().
Migrated source code repository to git and GitHub.

Version 1.8 2007-07-25

Contributed code contains Ruby scripts that plot ckjm metrics as charts.
The DIT calculation now also takes into account classes that are not directly processed. This may require explicitly setting up the java.ext.dirs property so that ckjm can locate the jar files containing those classes. Example:
java -Djava.ext.dirs=lib -jar ckjm-1.8.jar *.class

In the corresponding ant task, the new extdirs path-like structure (http://ant.apache.org/manual/using.html#path) of the ckjm task will accomplish the same function. Example:
<ckjm outputfile="hsqldb.xml" format="xml" classdir="/app/hsqldb/classes">
<extdirs path="/app/hsqldb/lib" />
<include name="**/*.class" />
</ckjm>

(This issue was discovered by 최재영(Choi Jae Young).)

Version 1.7 2006-04-14

Improve source code organization
Add javadoc documentation

Version 1.6 2005-11-05

Fix confusion between afferent and efferent couplings. (noted by Christian Hansen)

Version 1.5 2005-10-15

Add number of public methods (NPM) metric.
Declared exceptions affect coupling measurements (Antti Pöyhönen).
Option to report only public classes.
Count number of public methods.
Calls to different overloaded methods are measured separately (Antti Pöyhönen.
The XSL transformations are now more intelligent, and therefore easier to modify. (Julien Rentrop).

Version 1.4 2005-07-30

Added new class metric: efferent couplings (Ce).
Added command-line switch -s to enable the processing of the Java SDK classes.

Version 1.3 2005-06-02

Also count own class's methods when measuring RFC (Antti Pöyhönen).

Version 1.2 2005-05-11

Fix problem where processing JRE would hang following Object's parent (Object).
Add Ant task, XML output, and XSL files. (Julien Rentrop).

Version 1.1 2005-02-21

First public release.

Frequently Asked Questions

The metrics calculated by the program do not agree with those I calculate by hand. How come?
How can I process class files located in a jar file?
How can I run the tool in a JDK 1.4 environment?
I'm getting a ClassNotFoundException. How can I fix it?
I'm using ckjm in my research. How shall I cite it?
How can I deal with directory names containing spaces?

The metrics calculated by the program do not agree with those I calculate by hand. How come?

The ckjm program calculates the metrics from the code appearing in the compiled bytecode files. The Java compiler optimizes away some elements of the code (for example static final fields, and these do not take part in the calculations. You may want to consult the disassembled code (using a command like javap -c -private to see what elements ckjm takes into account.

How can I process class files located in a jar file?

See the documentation section titled Using Pipelines to Select Classes.

How can I run the tool in a JDK 1.4 environment?

You can use the open source tool retroweaver (http://retroweaver.sf.net) to create a backwards-compatible jar file. (Suggested by Paul King).

I'm getting a ClassNotFoundException. How can I fix it?

If you are getting messages like the one below, it means that ckjm can't locate the code for the corresponding classes, in order to properly calculate the depth of the inheritance tree (DIT) metric.


java.lang.ClassNotFoundException: Exception while looking for class
javax.servlet.http.HttpServlet: java.io.IOException:
Couldn't find: javax.servlet.http.HttpServlet.class

To solve this problem you must explicitly setup the java.ext.dirs property pointing to a directory containing the jar files where ckjm can locate those classes. Example:


java -Djava.ext.dirs=lib -jar ckjm-1.8.jar *.class

I'm using ckjm in my research. How shall I cite it?

Please cite the following article, which describes ckjm and the rationale of its design.

Diomidis Spinellis. Tool writing: A forgotten art? ( http://www.spinellis.gr/pubs/jrnl/2005-IEEESW-TotT/html/v22n4.html). IEEE Software, 22(4):9-11, July/August 2005. (doi:10.1109/MS.2005.111 (http://dx.doi.org/10.1109/MS.2005.111))

How can I deal with directory names containing spaces?

It's best to avoid putting spaces in file and directory names, because these can confuse many Unix-related tools that use spaces to separate arguments. If you can't avoid them, here are two tricks for getting around the problem. In a Windows environment use dir /x on the command line to obtain the short (8.3) name of the corresponding directory. On a Unix machine create a symbolic from the directory containing spaces to a directory without spaces, and use that second name:

ln -s '/path/to/directory with spaces/' /tmp/shortname

Contributors

Panagiotis Louridas: Fix for a script in the documentation
Antti Pöyhönen: RFC fix, count exceptions
Julien Rentrop: XML output and Ant task
