Access Control, Firewalls and VPNs

Hardware-based Access Control

• Protection problem: prevent processes from interfering
• Confinement problem: prevent prevent non-authorized communication
• Protection rings: levels of protection
• Trusted computing

Operating System Access Control

• Groups and roles
• Access control lists
• Blacklisting and whitelisting
• Capabilities
• Sandboxing

Firewall Purpose

• Restricts people to enter at a carefully controlled point
• Prevents attackers from getting close to other defenses
• Restricts people to leaving at a carefully controlled point
• Firewall can ensure that traffic is acceptable
• Focus of security decisions
• Enforce security policy
• Log network activity
• Limit exposure of one part of the organisation to others

Security Strategies

• Least priviledge: don't allow more than you need
• Defense in depth: have multiple security mechanisms
• Diversity of defence: have different security mechanisms
• Choke point: force attackers to use a narrow channel
• Weakest link: don't divert your attention from them
• Fail safe stance: fail in a way denying access
• Default permit (or deny) stance
• Universal participation: one opt-out can endanger all the rest
• Simplicity

Security by Obscurity

• is the only security
• is not real obscurity
• prevents accurate determination of a product's security
• is given irrational confidence

• helps to avoid vulnerability targetting (hiding equipment and versions)
• complements other measures
• hinders social engineering attacks (e.g. hide hostnames behind firewall)
• is used to protect other measures such as intrusion detection

Firewall Limitations

• malicious insiders
• connections that circumvent it
• completely new threats
• some viruses
• the administrator that does not correctly set it up

Firewall Technologies

• Packet filtering
• Proxy services
• Network address translation
• Virtual private network

How Packet Filtering Works

• Determine packet characteristics
  • address
  • protocol
  • port
• Associate with a network interface (in/outbound)
• Associate with other packets
  • reply
  • fragmentation
  • duplication
  • count
• Action:
  • Send
  • Drop
  • Reject (return an error)
  • Log
  • Raise an alarm

Evaluation of Packet Filtering

• Advantages
  • Easy to protect a network through the router
  • Efficient
  • Widely available
• Disadvantages
  • Difficult to setup
  • Some prolicies can not be enforced
  • Reduces router performance

Basic Packet Filtering

• Naming services--
  • DNS (53/udp) to all machines which are not DNS servers, DNS zone transfers (53/tcp) except from external secondaries
• Mail
  • SMTP (25/tcp) to all machines, which are not external mail relays
  • POP (109/tcp and 110/tcp)
  • IMAP (143/tcp)
• Web (except to external Web servers)
  • HTTP (80/tcp)
  • SSL (443/tcp)
  • may also want to block common high-order HTTP port choices (8000/tcp, 8080/tcp, 8888/tcp, etc.)

Other Service Packet Filtering

• Login services:
  • telnet (23/tcp)
  • SSH (22/tcp)
  • FTP (21/tcp)
  • NetBIOS (139/tcp)
  • rlogin et al (512/tcp through 514/tcp)
• RPC and NFS:
  • Portmap/rpcbind (111/tcp and 111/udp)
  • NFS (2049/tcp and 2049/udp)
  • lockd (4045/tcp and 4045/udp)
• NetBIOS in Windows NT:
  135 (tcp and udp), 137 (udp), 138 (udp), 139 (tcp). Windows 2000 - earlier ports plus 445(tcp and udp)
• X Windows:
  6000/tcp through 6255/tcp
• Naming services--
  • DNS (53/udp) to all machines which are not DNS servers, DNS zone transfers (53/tcp) except from external secondaries
• "Small Services"-- ports below 20/tcp and 20/udp, time (37/tcp and 37/udp)
• Miscellaneous--
  • TFTP (69/udp)
  • finger (79/tcp)
  • NNTP (119/tcp)
  • NTP (123/udp)
  • LPD (515/tcp)
  • syslog (514/udp)
  • SNMP (161/tcp and 161/udp, 162/tcp and 162/udp)
  • BGP (179/tcp)
  • SOCKS (1080/tcp)
• ICMP
  • incoming echo request (ping and Windows traceroute)
  • outgoing echo replies
  • time exceeded
  • destination unreachable messages
  • Do not block "packet too big" messages (type 3, code 4).

IP Packet Filtering

• Any packet coming into your network with a source address of your internal network
• Any packet coming into your network not with a destination address of your internal network
• Any packet leaving your network not with a source address of your internal network
• Any packet leaving your network with a destination address of your internal network.
• Any packet coming into your network or leaving your network with a private, loopback, or reserved source or destination address
  • 10.x.x.x/8,
  • 172.16.x.x/12
  • 192.168.x.x/16
  • 127.0.0.0/8.
• Source routed packets
• Packets with the IP options field set
• Reserved, DHCP auto-configuration and Multicast addresses
  • 0.0.0.0/8
  • 169.254.0.0/16
  • 192.0.2.0/24
  • 224.0.0.0/4
  • 240.0.0.0/4

How Proxying Works

• Application level gateway
• Depends on specialised client programs or user procedures
• Can also work transparently with a help of a router transparent proxy
• Sometimes also associated with caching (e.g. ftp, http)
• Most web clients provide built-in support for proxying
• Some services (SMTP, NNTP) are by default designed to work with proxy-style gateways
• Proxy technology examples:
  • SOCKS
  • TIS
  • Microsoft Proxy Server

Evaluation of Proxying

• Application level gateway
• Depends on specialised client programs or user procedures
• Can also work transparently with a help of a router transparent proxy
• Sometimes also associated with caching (e.g. ftp, http)
• Most web clients provide built-in support for proxying
• Some services (SMTP, NNTP) are by default designed to work with proxy-style gateways
• Proxy technology examples:
  • SOCKS
  • TIS
  • Microsoft Proxy Server

How Network Address Translation Works

• Use reserved IP addresses inside the network
• Map internal addresses to external addresses
• Use different addresses or ports to separate requests

NAT Example

Packets Inside the NAT

14:59:13.710291 eagle.spinellis.gr.1112 > istlab.dmst.aueb.gr.http:
 S 3678001010:3678001010(0) win 64240 <mss 1460,nop,nop,sackOK> (DF)

14:59:13.810853 istlab.dmst.aueb.gr.http > eagle.spinellis.gr.1112:
 S 881432074:881432074(0) ack 3678001011 win 57344 <mss 1460> (DF)

Packets on the Internet

14:59:13.725267 nat.spinellis.gr.1112 > istlab.dmst.aueb.gr.http:
 S 3678001010:3678001010(0) win 64240 <mss 1460,nop,nop,sackOK> (DF)

14:59:13.725285 istlab.dmst.aueb.gr.http > nat.spinellis.gr.1112:
 S 881432074:881432074(0) ack 3678001011 win 57344 <mss 1460> (DF)

Evaluation of Network Address Translation

• Advantages
  • Enforce control over outbound connections (internal addresses can not be used)
  • Restrict incoming traffic
  • Conceal internal network configuration
  • Conserve address space
• Disadvantages
  • Mapping interferes with stateless IP model
  • Confused by embedded IP addresses
  • Interferes with authentication and encryption
  • Confuses logging

Firewall Architectures

• Screening Router
• Dual-homed Host
• Screened Host
• Screened Subnet
• Internal Firewall
• Personal Firewall

Screening Router

• Costly if implemented as such
• Cheap if using spare processing capacity of existing router
• Impacts router performance
• May be OK for perimeter, not between administrative boundaries
• Inflexible

Dual-homed Host

• Low cost
• Flexible
• High maintenance
• Not suitable for high bandwidth links

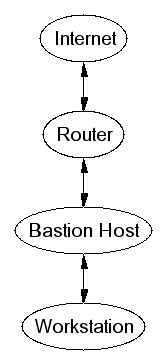

Screened Host

• Router provides packet filters for some basic services
• Bastion host proxies more risky services
• Not suitable for exporting services

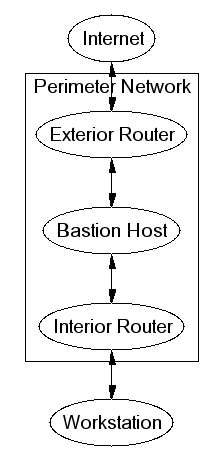

Screened Subnet

• Protects against bastion host gettin cracked
• Suitable for exporting services

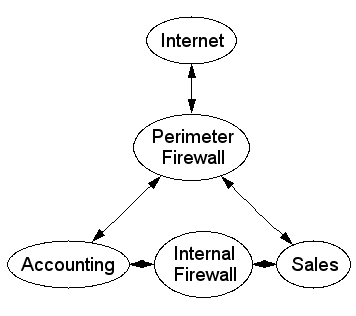

Internal Firewall

• Isolates different administrative domains
• Manages different levels of trust

Personal Firewall

• Software run on workstation
• Handles packets before other services
• Centralized configuration and monitoring point
• Decentralized administration can be a problem

Incident Levels

• Probe: a few tries to break in
• Attack: concerted attempt
• Break-in: host has been compromised

Probe

• Try to access insecure services
• Try common names (anonumous, guest)
• Address probing
• Port scanning

Attack

• Multiple failed attempts to valid accounts
• Attempts over a lengthy period from the same host
• Successful login from unknown site
• Increases in incoming / outgoing traffic

Break-in

• Deleted or modified log files
• Installation of a rootkit
• Programs behave in a strange way
• Unexpected logins to privileged users
• New services running
• Changed login prompt
• New programs running
• Unaxpected changes in disk space usage
• Probes from inside the network

Maintenance: Housekeeping

• Backup
• Manage accounts
• Keep disk clean (so that you can recognise intrusion signs)
• Rotate logs

Maintenance: Monitoring

• Signs for a compromise
• Attacks
• Log
  • Dropped and rejected packets
  • Denied connections
  • Rejected connection attempts
  • Username and time of successful connections (bastion hosts)
  • Error messages
• Do not log passwords (and failed user names as they might be passwords)

Maintenance: Updating

• Subscribe to mailing lists
• Check vendor patches
• Upgrade when needed (and only then)

VPN Architectures

• Site-to-site: used to connect organisational branches
• Remote access
• Extranet

Tunneling

• Each packet is encapsulated
• Can provide:
  • Confidentiality
  • Integrity
  • Authenticity

Defence in Depth Example

2 Layers

1. Firewall
2. Host based packet filtering

5 Layers

1. Border router
2. Network management system
3. Intrusion detection system
4. Firewall
5. Host based packet filtering

8 Layers

1. Border router
2. Network management system
3. Intrusion detection system
4. Firewall
5. Host based packet filtering
6. Log analysis and alert
7. File integrity validation
8. Cryptography

Bibliography

• Firewalls and Internet Security by Bill Cheswick and Steve Bellovin

• Ross Anderson. Security Engineering: A Guide to Building Dependable Distributed Systems, pages 374–378. John Wiley & Sons, New York, 2001.

• Dieter Gollmann. Computer Security, pages 224–242. John Wiley & Sons, New York, 1999.

• Eric Rescorla. SSL and TLS. Addison-Wesley, 2001.

• Elizabeth Zwicky, Simon Cooper, and D. Brent Chapman. Building Internet Firewalls. O'Reilly and Associates, Sebastopol, CA, second edition, 2000.
