Dismal Code: Studying the Evolution of Security Bugs
Dimitris Mitropoulos, Vassilios Karakoidas, Panos Louridas
Department of Management Science and Technology,
Athens University of Economics and Business
dimitro@aueb.gr, bkarak@aueb.gr, louridas@aueb.gr,
Georgios Gousios
Software Engineering Research Group,
Delft University of Technology
G.Gousios@tudelft.nl,
Diomidis Spinellis
Department of Management Science and Technology,
Athens University of Economics and Business
dds@aueb.gr
Abstract
Background. Security bugs are critical programming errors that can lead to serious
vulnerabilities in software. Such bugs may allow an attacker to take over
an application, steal data or prevent the application from working at all.
Aim. We used the projects stored in the Maven repository to study the
characteristics of security bugs individually and in relation to other software
bugs. Specifically, we studied
the evolution of security bugs through time. In addition, we examined
their persistence and their relationship with
a) the size of the corresponding version, and
b) other bug categories.
Method. We analyzed every project version of the Maven repository by
using FindBugs, a popular static analysis tool.
To see how security bugs evolve over time we took advantage of
the repository's project history and dependency data.
Results. Our results indicate that there is no simple rule governing
the number of security bugs as a project evolves.
In particular, we cannot say that across projects security-related
defect counts increase or decrease significantly over time.
Furthermore, security bugs are not eliminated in a
way that is particularly different from the other bugs.
In addition, the relation of security bugs with a project's size
appears to be different from the relation of the bugs
coming from other categories.
Finally, even if bugs seem to have similar behaviour,
severe security bugs seem to be unassociated with other bug categories.
Conclusions. Our findings indicate that further research should be done
to analyze the evolution of security bugs. Given the fact that our experiment
included only Java projects, similar research could be done for another
ecosystem. Finally, the fact that projects have their own idiosyncrasies
concerning security bugs, could help us find the common characteristics
of the projects where security bugs increase over time.
1 Introduction
A security bug is a programming error that introduces a potentially exploitable
weakness into a computer system [
34]. This
weakness could lead to a security breach with unfortunate consequences in
different layers, like databases, native code, applications, libraries and
others. Despite the significant effort to detect and eliminate such
bugs, little attention has been paid to study them in relation to
software evolution [
26].
One of the most common approaches to identify security bugs is
static analysis [
6]. This kind of analysis involves the
inspection of the program's source or object code without executing
it.
In this paper we present how we used a large software ecosystem to analyse the
relationship of different types of security vulnerabilities to
evolving software packages.
For our research we used
FindBugs,
a static analysis tool that examines bytecode to detect software bugs and has already been used in
research [
1,
19,
36].
Specifically, we ran FindBugs on all the project
versions of all the projects that exist in the
Maven Central Repository
(approximately 265 gb of data-see Section
3.2).
Then we observed the changes that involved the security bugs and their characteristics.
We chose to focus our study on security bugs rather than other types of
software defects. This is because compared to other bug categories,
failures due to security bugs have two distinct features:
they can severely affect an organization's infrastructure [
33], and
they can cause significant financial damage to
an organization [
39,
2].
Specifically,
whereas a software bug can cause a software artifact to fail,
a security bug can allow a malicious user to alter the execution
of the entire application for his or her own gain.
In this case, such bugs could give rise to a wide
range of security and privacy issues, like
the access of sensitive information,
the destruction or modification of data, and
denial of service.
Moreover, security bug disclosures lead to a negative and significant change
in market value for a software vendor [
38].
Hence, one of the basic pursuits in every new software release should
be to mitigate such bugs.
The motivation behind our work was to validate whether programmers care for
the risk posed by security bugs when they release a new version of their software.
In addition, we wanted to investigate other critical features associated with such
vulnerabilities like the persistence of a bug;
in essence, to see whether critical bugs stay unresolved for a long time.
Also, we wanted to elaborate more on the relation of security
bugs with other bug categories.
In the same manner, we tried to examine the relationship
between the size of a project release and the number of security bugs that it contains,
knowing the that research has produced contradictory results on this
issue [
35,
28,
13].
Finally, we examined the Maven ecosystem as a whole from a security
perspective. Its structure gave us the opportunity to see if a project version that is a dependency of
a large number of others contains a low rate of security bugs.
In this work we:
- Analyze how security bugs found through static analysis
evolve over time. To achieve this, we inspected all releases of every project.
Our hypothesis is that security bugs should decrease as a project evolves,
for they form critical issues, which developers should eliminate.
- Examine security bug persistence across releases.
We expect that security bugs should be eliminated earlier than other bugs.
- Study the relation between security bugs and a project
release's size. Our hypothesis is that security bugs are proportional to a project
release's size (defined in terms of bytecode size).

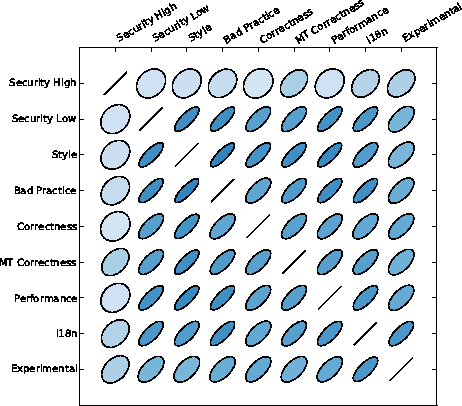

- Examine the correlation of security bugs with other bug categories.
Our hypothesis is that security bugs appear together with bugs that
are related with performance, coding practices, and product stability.
In the rest of this paper we
outline related work (Section
2),
describe the processing of our data and our experiment (Section
3),
present and discuss the results we obtained (Section
4),
and end up with a conclusion and directions for future work (Section
5).
2 Related Work
There are numerous methods for mining software repositories in the context
of software evolution [
20]. In this section we focus on the ones
that highlight the relationship between software bugs and evolution and try to
extract useful conclusions.
Refactoring identification through software evolution is an approach used to
relate refactorings with software bugs. Weißgerber et al. found that a high
ratio of refactorings is usually followed by an increasing ratio of bug
reports [
40]. In addition, they indicated that software bugs are sometimes introduced
after an incomplete refactoring [
12].
Ratzinger et al. [
31] showed that the number of bugs decreases, when the number of
refactorings increases. Finally, Kim M. et al. [
22] indicated that api-level
refactorings aid bug fixes.
Micro patterns, proposed by Kim et al. [
24]
detect bug-prone patterns among source code. Micro patterns describe programming
idioms like inheritance, data management, immutability and others. The approach
involved the examination of all revisions of three open-source projects to extract bug
introduction rates for each pattern. Gil et al. [
11] analysed the
prevalence of micro patterns across five Sun jdk versions to conclude that
pattern prevalence tends to be the same in software collections.
Querying techniques are used to answer a broad range of questions
regarding the evolution history of a project [
17]. Bhattacharya et
al. [
4,
3] proposed a framework that is based on
recursively enumerable languages. The framework can correlate software
bugs with developers in various ways. For instance, return the list of
bugs fixed by a specific developer. Fischer et al. [
10] proposed
an approach for populating a release history database that combines code
information with bug tracking data. In this way, a developer can couple files
that contain common bugs, estimate code maturity with respect to the bugs,
etc. The "Ultimate Debian Database" [
29] is an sql-based
framework that integrates information about the Debian project from various
sources to answer queries related to software bugs and source code.
D'Ambros et al. have used
bug history analysis to detect
the critical components of a project [
7]. This is done by using an
evolutionary meta-model [
8]. The same approach was
also used by Zimmermann et al. [
42] to check the correlation
of bugs with software properties like code complexity, process quality and others
and to predict future properties.
The evolution of software artifacts has also been analysed to
reduce the false
alarms of the various static analysis tools. To achieve this, Spacco et
al. [
36] introduced
pairing and
warning signatures. In the
former, they tried to pair sets of bugs between versions in order to find
similar patterns. In the latter, they computed a signature for every bug. This
signature contained elements like the name of the class where the bug was found,
the method and others. Then they searched for similar signatures between
versions. In their research they studied the evolution of 116 sequential
builds of the Sun Java Sevelopment Kit ( jdk). Their findings indicated that
high priority bugs are fixed over time. To improve the precision of bug
detection, Kim et al. [
23] proposed a history-based warning
prioritization algorithm by mining the history of bug-fixes of three
different projects. Working towards the same direction, Heckman
et al. [
15,
14] have introduced benchmarks that use specific
correlation algorithms and classification techniques to evaluate alert
prioritization approaches.
Lu et al. [
25] studied the
evolution of file-system code.
Specifically, they analysed the changes of Linux file-system patches to extract
bug patterns and categorize bugs based on their impact. Their findings
indicated that the number of file-system bugs does not die down over time. By
categorizing bugs they also showed the frequency of specific bugs in specific
components.
Completing the above approaches, our work focuses on the subset of security bugs.
Focusing on such bugs is not a new idea.
Ozment and Schechter [
30] examined the code base of the Open bsd
operating system to determine whether its security is increasing
over time. In particular, they measured the rate at which new code
has been introduced and the rate at which defects have been reported over
a 7.5 year period and fifteen releases.
Even though the authors present statistical evidence
of a decrease in the rate at which vulnerabilities are being reported,
defects seem to appear persistent for a period of at least 2.6 years.
Massacci et al. [
27] observed
the evolution of software defects by examining six major versions of Firefox.
To achieve this they created a database schema that contained information
coming from the "Mozilla Firefox-related Security Advisories" ( mfsa)
list,
Bugzilla entries and others. Their findings indicated that security bugs are
persistent over time. They also showed that there are many web users that use
old versions of Firefox, meaning that old attacks will continue to work.
Zaman et al. [
41] focused again on Firefox to study the relation of
security bugs with performance bugs. This was also done by analysing the project's
Bugzilla. Their research presented evidence that security bugs require more experienced developers
to be fixed. In addition, they suggested that security bug fixes are more complex than the
fixes of performance and other bugs.
Shahzad et al. [
34] analysed large sets of vulnerability data-sets to observe
various features of the vulnerabilities that they considered critical. Such features
were the functionality and the criticality of the defects. Their analysis
included the observation of vulnerability disclosures, the behavior of
hackers in releasing exploits for vulnerabilities, patching and others. In
their findings they highlighted the most exploited defects and showed that
the percentage of remotely exploitable vulnerabilities has gradually increased
over the years. Finally, Edwards et al. [
9] have recently conducted
a study similar to ours in which they have considered only four projects.
Their results demonstrate that the number of exploitable bugs does not
always improve with each new release and that the rate of discovery of
exploitable bugs begins to drop three to five years after the
initial release.
3 Methodology
Our experiment involved the collection of the metric results of the
FindBugs tool. Before and during the experiment, we performed a number
of filters on the data coming from the Maven repository, for reasons
that we will describe below.
3.1 Experiment
The goal of our experiment was to retrieve all the bugs that FindBugs reports,
from all the project versions existing on the Maven repository (in the Maven
repository, versions are
actual releases). The experiment involved four entities:
a number of
workers (a custom Python script), a
task queue
mechanism (Rabbit mq-version 3.0.1),
a
data repository (Mongo db-version 2.2),
and the
code repository, which in our case it was
the public Maven repository.
Maven is a build automation tool used primarily for Java projects and it is
hosted by the Apache Software Foundation.
It uses xml to describe the software project being built, its dependencies
on other external modules, the build order, and required plug-ins.
To build a software component, it dynamically downloads Java libraries
and Maven plug-ins from the Maven central repository,
and stores them in a local cache. The repository can be updated with
new projects and also with new versions of existing projects.
First, we scanned the Maven repository for appropriate jars and created a
list that included them. We discuss the jar selection process in the next
section. With the jar list at hand, we created a series of processing tasks
and added them to the task queue. Then we executed twenty five (Unix-based)
workers that checked out tasks from the queue, processed the data and stored the
results to the data repository.
A typical processing cycle of a worker included the following steps: after
the worker spawned, it requested a task from the queue. This task contained
the jar name, which was typically a project version that was downloaded locally.
First, specific jar metadata were calculated and stored. Such metadata included
its size, its dependencies, and a number that represented the chronological order of the
release. This order was derived from an xml file that
accompanies every project in the Maven repository called
maven-metadata.xml. Then, FindBugs was invoked by the worker and its results were
also stored in the data repository. When the task was completed the queue
was notified and the next task was requested. This process was executed for
all the available jars in the task queue. A schematic representation of
the data processing architecture can be seen in Figure
1.

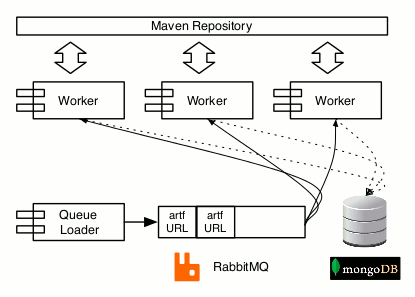

Figure 1: The data processing architecture.
3.2 Data Provenance
Initially, we obtained a snapshot (January 2012) of the Maven repository and
handled it locally to retrieve a list of all the names of the project versions
that existed in it. A project version can be uniquely identified by the triplet:
group id,
artifact id and
version.
FindBugs works by examining the compiled Java virtual
machine bytecodes of the programs it checks, using the bytecode engineering
library ( bcel).
To detect a bug, FindBugs uses various formal methods like
control flow and
data flow
analysis. It has also other detectors that employ
visitor patterns over
classes and methods by using
state machines to reason about values stored
in variables or on the stack.
Since FindBugs analyses applications written in the Java
programming language, and the Maven repository
hosts projects from languages other than Java such as Scala, Groovy,
Clojure, etc., we filtered out such projects by performing a series of checks in
the repository data and metadata.
In addition, we implemented a series of audits in the worker scripts that
checked if the jars are valid in terms of implementation. For instance,
for every jar the worker checked if there were any
.class files
before invoking FindBugs. After the project filtering, we narrowed down
our data set to 17,505 projects with 115,214 versions.
Table
1 summarises the data set information and
provides the basic descriptive statistic measurements. The distribution of version
count among the selected projects is presented in Figure
2.
The statistical measurements presented in Table
1
indicate that we have 17,505 projects and the data set's median is 3,
which means that almost 50% (8,753 projects) of the project
population have 1 to 3 versions. In general, most projects have a few
number of versions, there are some projects with ten versions and
only a few with hundreds of versions. The maximum number of versions
for a project is 338. The 3
rd quartile measurement also indicated
that 75% (13,129) of the projects have a maximum of 8 versions.
Table 1: Descriptive statistics measurements for the Maven repository.
Measurement | Value |
Projects | 17,505 |
Versions (total) | 115,214 |
Min (versions per project) | 1 |
Max (versions per project) | 338 |
Mean (versions per project) | 6.58 |
Median (versions per project) | 3 |
Range (over versions) | 337 |
1st Quartile (over versions) | 1 |
3rd Quartile (over versions) | 8 |

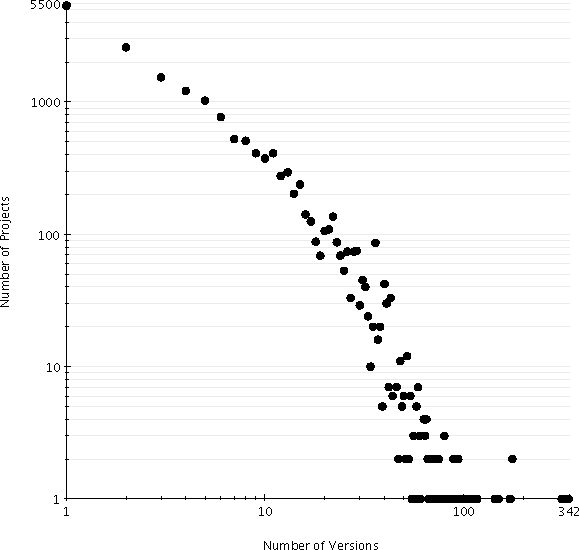

Figure 2: Distribution of version count among project population.
3.3 Threats to Validity
A threat to the internal validity of our experiment could be the false alarms of the
FindBugs tool [
1,
18]. False positives and negatives of static analysis tools and
how they can be reduced is an issue that has already been discussed in the literature
(see Section
2).
In addition, reported security bugs may not be applicable to an
application's typical use context.
For instance, FindBugs could report an sql injection vulnerability [
32]
in an application that receives no external input.
In this particular context, this would be a false positive alarm.
Furthermore, given that our analysis is done on open-source projects
written in the Java programming language and hosted on Maven,
a threat to the external validity of our work
is the fact that our results may not be applicable to other
programming languages, ecosystems, and development cultures.
In particular, a large class of security problems such as
buffer overflows [
21] do not apply in our study since
Java enforces bound checking at runtime.
4 Results and Analysis
Our findings can be analysed at two levels. First, we discuss some
primary observations concerning the security bugs of the Maven repository as a whole.
Then, we provide a comprehensive analysis of the results and highlight our key findings.
Table 2: Bug categorisation according to FindBugs.
Category | Description |
Bad Practice | Violations of recommended and essential
coding practice. |
Correctness | Involves coding misting a way that is particularly different from the other bug sakes resulting in code
that was probably not what the developer intended. |
Experimental | Includes unsatisfied obligations. For instance,
forgetting to close a file. |
Internationalization (i18n) | Indicates the use of non-localized methods. |
Multi-Threaded ( mt) Correctness | Thread synchronization issues. |
Performance | Involves inefficient memory usage allocation, usage
of non-static classes. |
Style | Code that is confusing, or
written in a way that leads to errors. |
Malicious Code | Involves variables or fields exposed to classes that should
not be using them. |
Security | Involves input validation issues, unauthorized database connections
and others. |
4.1 Overview and Initial Results
FindBugs separates software bugs into nine categories (see
Table
2). Two of them involve security issues:
Security and
Malicious Code. From the total number of releases, 4,353 of them contained
at least one bug coming from the first category
and 45,559 coming from the second.
Our first results involve the most popular bugs in the Maven repository.
Figure
3 shows how software bugs are distributed among the
repository. Together with the
Bad Practice bugs and the
Style bugs,
security bugs (the sum of the
Security and
Malicious Code
categories - 0.21% + 21.81%) are the most popular in the repository ( ≥ 21% each).
This could be a strong indication that programmers write code
that implements the required functionality without considering its many
security aspects; an issue that has already been reported in
literature [
37].

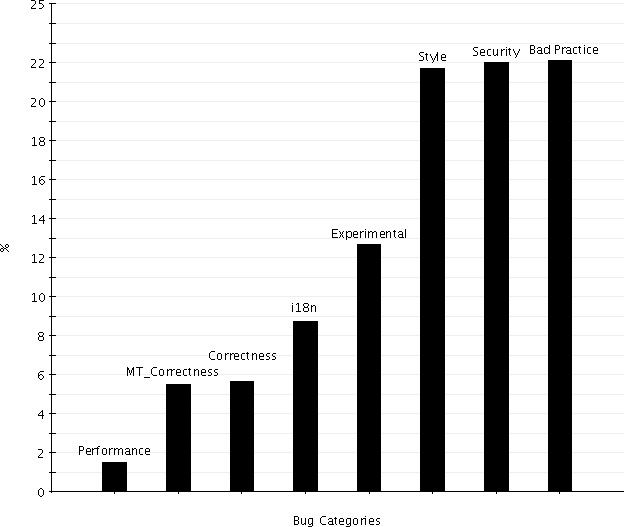

Figure 3: Bug percentage in Maven repository.
Another observation involves bugs that we could call
Security High and they are a subset of the
Security category.
Such bugs are related to vulnerabilities that appear due to the lack of user-input
validation and can lead to damaging attacks like sql injection and
Cross-Site Scripting [
32].
To exploit such vulnerabilities, a malicious user does
not have to know anything about the application internals.
For almost all the other security bugs (coming from
the
Malicious Code category and the rest of
the
Security category bugs),
another program should be written to incorporate references to
mutable objects, access non-final fields, etc.
Also, as bug descriptions indicate,
if an application has bugs coming from the
Security High category,
it might have more vulnerabilities that FindBugs doesn't report.
Table
3 presents the number
of releases where at least one of these bugs exists. In essence, 5,501 releases
( ≈ 4,77% ), contained at
least one severe security bug. Given the fact that other projects include these
versions as their dependencies, they are automatically rendered vulnerable if
they use the code fragments that include the defects.
The remaining bugs of the
Security category
are grouped together with the bugs of the
Malicious Code category
in another subcategory that we call
Security Low.
This category contains for the most part, bugs
that imply violations of good oop (object-oriented programming)
design (i.e. keeping variables private to classes and others).
The above categorization was done specifically to point out the
behaviour of bugs that currently top the corresponding lists of most
security providers.
Table 3: Number of project releases that contain at least one "Security
High" bug.
Bug Description | Number of Project Releases |
hrs: http cookie formed from untrusted input | 151 |
hrs: http response splitting vulnerability | 1,579 |
pt: absolute path traversal in servlet | 103 |
pt: relative path traversal in servlet | 57 |
sql: non-constant string passed to execute method on an sql statement | 1,875 |
sql: a prepared statement is generated from a non-constant String | 1,486 |
xss: jsp reflected cross site scripting vulnerability | 18 |
xss: Servlet reflected cross site scripting vulnerability in error page | 90 |
xss: Servlet reflected cross site scripting vulnerability | 142 |
Linus's Law states that "given enough eyeballs, all bugs are shallow".
In a context like this, we expect that
the project versions that are dependencies to many other projects
would have a small number of security
bugs. To examine this variation of the Linus's Law and highlight the
domino effect [
39] we did the
following: during the experiment we retrieved the
dependencies of every version. Based on this information we created a graph
that represented the snapshot of the Maven repository. The
nodes of the graph represented the versions and the vertices their dependencies.
The graph was not entirely accurate. For instance, if
a dependency was pointing only to a project (and not to a specific version), we chose to
select the latest version found on the repository. Also, this graph is not
complete. This is because there were missing versions.
From the 565,680 vertices, 191,433
did not point to a specific version while 164,234 were pointing to missing ones.
The graph contained 80,354 nodes. Obviously, the number does not correspond to
the number of the total versions (see Section
3.2). This is because
some versions did not contain any information about their dependencies so they
are not represented in the graph. After creating the graph, we ran the PageRank
algorithm [
5] on it and retrieved all PageRanks for every node. Then we
examined the security bugs of the fifty most popular nodes based on their PageRank.
Contrary to Linus's Law, thirty three of them contained bugs coming from the
Security Low subcategory, while two of them contained
Security High bugs.
Twenty five of them were latest versions at the time. This also highlights
the domino effect.
4.2 Analysis
Here, we present our key findings concerning the evolution of security bugs.
4.2.1 How Security Bugs Evolve Over Time
The relation between bugs and time can be traced from the number of
bugs per category in each project version. We can then calculate the
Spearman correlations between the defects count and the ordinal
version number across all projects to see if bigger versions relate to
higher or lower defect counts. The results are shown in
Table
4. Although the tendency is for defect
counts to increase, this tendency is extremely slight.
The zero tendency applies to all versions of all projects together.
The situation might be different in individual projects. We therefore
performed Spearman correlations between bug counts and version
ordinals in all projects we examined. These paint a different picture
from the above table, shown in Figure
4. The
spike in point zero is explained by the large number of projects for
which no correlation could be established-note that the scale is
logarithmic. Still, we can see that there were projects where a
correlation could be established, either positive or negative. The
Security High category is particularly bimodal, but this is
explained by the small number of correlations that could be
established, nine in total.
Overall, Table
4 and
Figure
4 suggest that
we cannot say that
across projects defect counts increase or decrease significantly
across time. In individual projects, however, defect counts can have a
strong upwards or downwards tendency. There may be no such thing as a
"project" in general, only particular projects with their own
idiosyncrasies, quality features, and coding practices.
Another take on this theme is shown in Figure
5,
which presents a histogram of the changes of different bug counts in
project versions. In most cases, a bug count does not change between
versions; but when it does change, it may change upwards or downwards.
Note also the spectacular changes of introducing or removing thousands
of defects; this may be the result of doing and undoing a pervasive
code change that runs foul of some bug identification rule.
Table 4: Correlations between version and defects count.
Category | Spearman Correlation | p-value |
Security High | 0.08 | << 0.05 |
Security Low | 0.02 | << 0.05 |
Style | 0.03 | << 0.05 |
Correctness | 0.04 | << 0.05 |
Bad Practice | 0.03 | << 0.05 |
MT Correctness | 0.09 | << 0.05 |
i18n | 0.06 | << 0.05 |
Performance | (0.01) | 0.07 |
Experimental | 0.09 | << 0.05 |
|

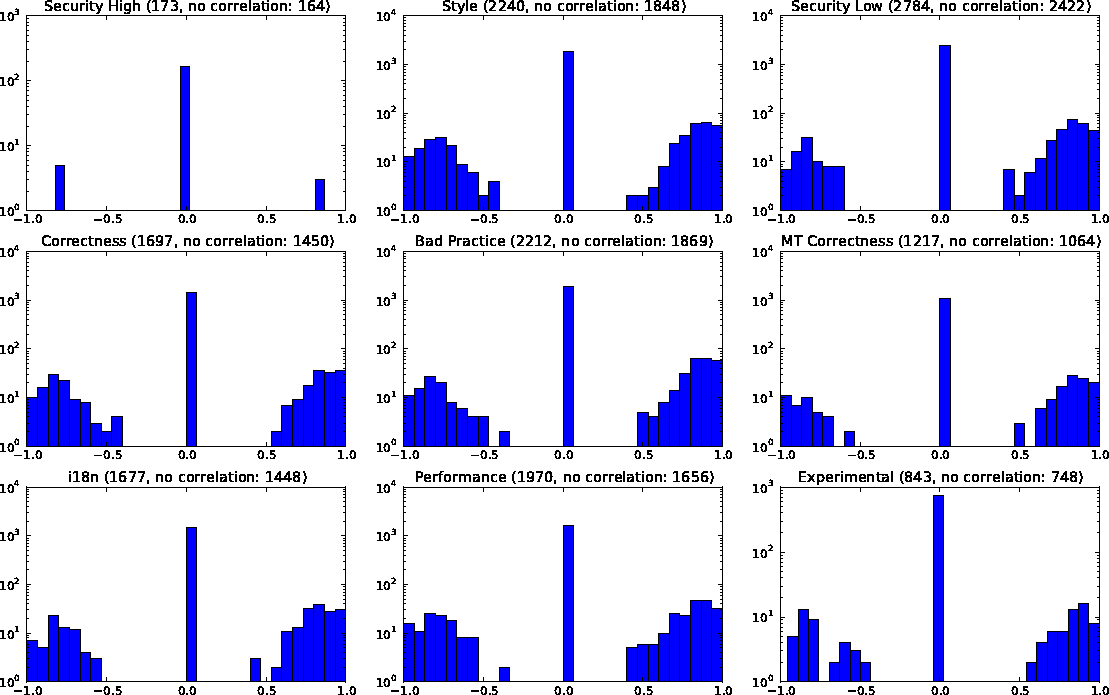

Figure 4: Histograms of correlations between bug counts and version
ordinals per project. In brackets the total population size and
the number of no correlation instances.

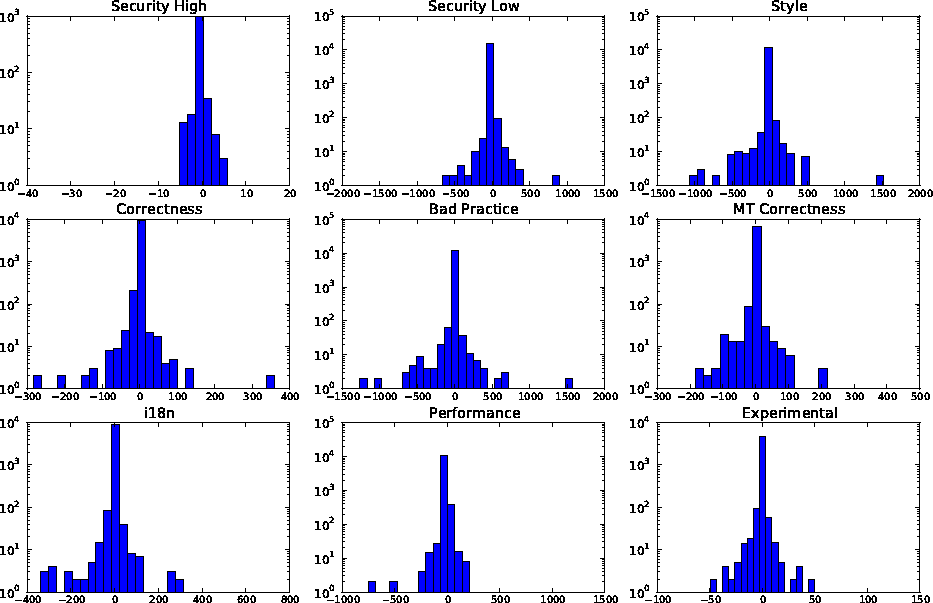

Figure 5: Changes in bug counts between versions.
4.2.2 Persistence of Security Bugs
To examine the relation between the persistence of different kinds of
bugs, and of security bugs in particular, we used as a persistence
indicator the number of versions a bug remains open in a project. To
"tag" a bug we created a bug identifier by using the type of the bug,
the method name and the class name in which the bug was found in. We
chose not to use the line number of the location of the bug since it
could change from version to version and after a possible code
refactoring. We grouped the persistence numbers by bug categories and
then performed a Mann-Whitney
U [
16] test among all bug
category pairs. The results are presented in
Table
6 (at the end of this paper). Cells in
brackets show pairs where no statistically significant difference was
found.
In general, although the average number of versions bugs in different
bug categories that remained open was statistically different in many
cases, the difference is not spectacular.
In all cases a bug persists
on average between two and three versions, with the difference being
in the decimal digits.
4.2.3 The Relation of Defects with the size of a JAR
We explored the relation between defects with the size of a project
version, measured by the size of its jar file by carrying out
correlation tests between the size and the defect counts for each
project and version. The results, all statistically significant (
p << 0.05) can be seen in Table
5.
The
Security High category stands out by having a remarkably lower
effect than the other categories, even
Security Low that nearly
tops the list. As we mentioned earlier, bugs that belong to the
Security High category are related to
user-input validation issues. Hence, even if a programmer adds
code to a new version, if this code does not require user
input, the possibility of such bug is minimal.
Table 5: Correlations between jar size and defects count.
|
Category | Spearman Correlation | p-value |
Security High | 0.19 | << 0.05 |
Security Low | 0.65 | << 0.05 |
Style | 0.68 | << 0.05 |
Correctness | 0.51 | << 0.05 |
Bad Practice | 0.67 | << 0.05 |
MT Correctness | 0.51 | << 0.05 |
i18n | 0.53 | << 0.05 |
Performance | 0.63 | << 0.05 |
Experimental | 0.36 | << 0.05 |
|
4.2.4 Security Bugs VS Other Bug Categories
To see whether bugs flock together we performed pairwise correlations
between all bug categories. We calculated the correlations between the
number of distinct bugs that appeared in a project throughout its
lifetime, see Figure
6. We found significant, but not always
strong, correlations between all pairs. In general, the
Security
High category showed the weakest correlations with the other
categories. Our results show that in general
bugs do flock together.
We do not find projects with only a certain kind of bug; bugs come
upon projects in swarms of different kinds. Bugs of the
Security
High category, though, are different: they are either not
associated with other bugs, or only weakly so. Perhaps it takes a
special kind of blunder to make it a security hazard. Thus, to find such
defects, code reviewers with experience in software security
issues might be needed.
Figure 6: Correlation matrix plot for bug categories.
5 Conclusions and Future Work
We analysed more than 260 gb of interdependent project versions to see
how security bugs evolve over time, their persistence, their relation
with other bug categories, and their relationship with size in terms
of bytecode.
Our primary hypothesis was that security bugs, and especially severe
ones, would be corrected as projects evolve. We found that, although
bugs do close over time in particular projects, we do not have an indication that across
projects they decrease as projects mature. Moreover, defect counts may
increase, as well as decrease in time. Contrary to our second research hypothesis,
we found that security
bugs are not eliminated in a way that is particularly different from the other bugs.
Also, having an average of two to three versions persistence in a sample where 60%
of the projects have three versions, is not a positive result especially in the
case of the
Security High bugs. Concerning the relation between
severe security bugs and a project's size
we showed that they are not proportionally related.
Given that, we could say that it would be productive to search for and fix
security bugs even if a project grows bigger.
Furthermore, the pairwise correlations between all categories
indicated that even though all the other
categories are related, severe bugs do not appear together with the other bugs.
Also, it is interesting to see that security bugs were one of the top two
bug categories existing in a large ecosystem. Finally, we highlighted the
domino effect, and showed evidence that indicates that Linus's Law does not
apply in the case of the security bugs.
Contrary to the approaches that examine versions
formed after every change that has been committed to the repository,
our observations are made from a different perspective.
The versions examined in this work were actual releases
of the projects. As a result we do not have an indication of how many changes
have been made between the releases.
In essence, these jars were the ones that were or still are,
out there in the wild, being used either as applications,
or dependencies of others.
Furthermore, the fact that projects have their own idiosyncrasies concerning
security bugs, could help us answer questions like: what are the common
characteristics of the projects where security bugs increase over time?
In addition, by examining source code repositories more closely we could see how
different development styles (i.e. size of commits, number of developers)
affect projects.
By selecting an large ecosystem that includes applications written only
in Java, we excluded by default measurements that involve vulnerabilities like
the infamous buffer overflow defects [
21]. Still, by examining software
artifacts with similar characteristics facilitates the formation of
an experiment. Thus, future work on our approach could also involve
the observation of other ecosystems, that serve different languages,
in the same manner such as, Python's PyPY (Python Package Index),
Perl's cpan (Comprehensive Perl Archive Network), and Ruby's
RubyGems.
6 Acknowledgments
This research has been co-financed by the European Union (European Social Fund
- ESF) and Greek national funds through the Operational Program
"Education and Lifelong Learning" of the National Strategic Reference Framework -
Research Funding Program: Heracleitus II. Investing in knowledge society
through the ESF.
Table 6: Bug persistence comparison.
Security High | (0.04, p = 0.97
2.72, 2.36
243, 35048) | 2.22, p < 0.05
2.72, 2.12
243, 49043 | (−0.51, p = 0.61
2.72, 2.50
243, 12905) | 2.77, p < 0.01
2.72, 2.11
243, 49324 | (1.02, p = 0.31
2.72, 2.48
243, 10227) | (−1.19, p = 0.23
2.72, 2.74
243, 10718) | (−1.00, p = 0.32
2.72, 2.65
243, 23598) | (−0.33, p = 0.74
2.72, 2.85
243, 2686) |
Security Low | | 20.27, p << 0.05
2.36, 2.12
35048, 49043 | −3.59, p << 0.05
2.36, 2.50
35048, 12905 | 25.17, p << 0.05
2.36, 2.11
35048, 49324 | 5.59, p << 0.05
2.36, 2.48
35048, 10227 | −7.55, p << 0.05
2.36, 2.74
35048, 10718 | −8.19, p << 0.05
2.36, 2.65
35048, 23598 | (−1.39, p = 0.17
2.36, 2.85
35048, 2686) |
Style | | | −17.96, p << 0.05
2.12, 2.50
49043, 12905 | 5.66, p << 0.05
2.12, 2.11
49043, 49324 | −6.84, p << 0.05
2.12, 2.48
49043, 10227 | −20.61, p << 0.05
2.12, 2.74
49043, 10718 | −26.18, p << 0.05
2.12, 2.65
49043, 23598 | −8.30, p << 0.05
2.12, 2.85
49043, 2686 |
Correctness | | | | 21.38, p << 0.05
2.50, 2.11
12905, 49324 | 7.44, p << 0.05
2.50, 2.48
12905, 10227 | −3.57, p << 0.05
2.50, 2.74
12905, 10718 | −2.91, p < 0.01
2.50, 2.65
12905, 23598 | (0.40, p = 0.69
2.50, 2.85
12905, 2686) |
Bad Practice | | | | | −10.02, p << 0.05
2.11, 2.48
49324, 10227 | −23.63, p << 0.05
2.11, 2.74
49324, 10718 | −30.32, p << 0.05
2.11, 2.65
49324, 23598 | −9.98, p << 0.05
2.11, 2.85
49324, 2686 |
MT Correctness | | | | | | −10.17, p << 0.05
2.48, 2.74
10227, 10718 | −10.83, p << 0.05
2.48, 2.65
10227, 23598 | −4.03, p << 0.05
2.48, 2.85
10227, 2686 |
i18n | | | | | | | (1.29, p = 0.20
2.74, 2.65
10718, 23598) | 2.46, p < 0.05
2.74, 2.85
10718, 2686 |
Performance | | | | | | | | (1.92, p = 0.05
2.65, 2.85
23598, 2686) |
| | | | | | | | |
Security Low | | | | | | | |
Style | | | | | | |
Correctness | | | | | |
Bad Practice | | | | |
MT Correctness | | | |
i18n | | |
Performance | |
Experimental |
The matrix presents pairwise Mann-Whitney
U test results
between the different bug categories. Each cell contains the test
result (the value of
U), the
p-value, the average for each
category and the sample size for each category. Cells in brackets show
pairs where no statistically significant difference was found.
